A4VG125EP2/31+A4VG125EP2/31 (R909437738)

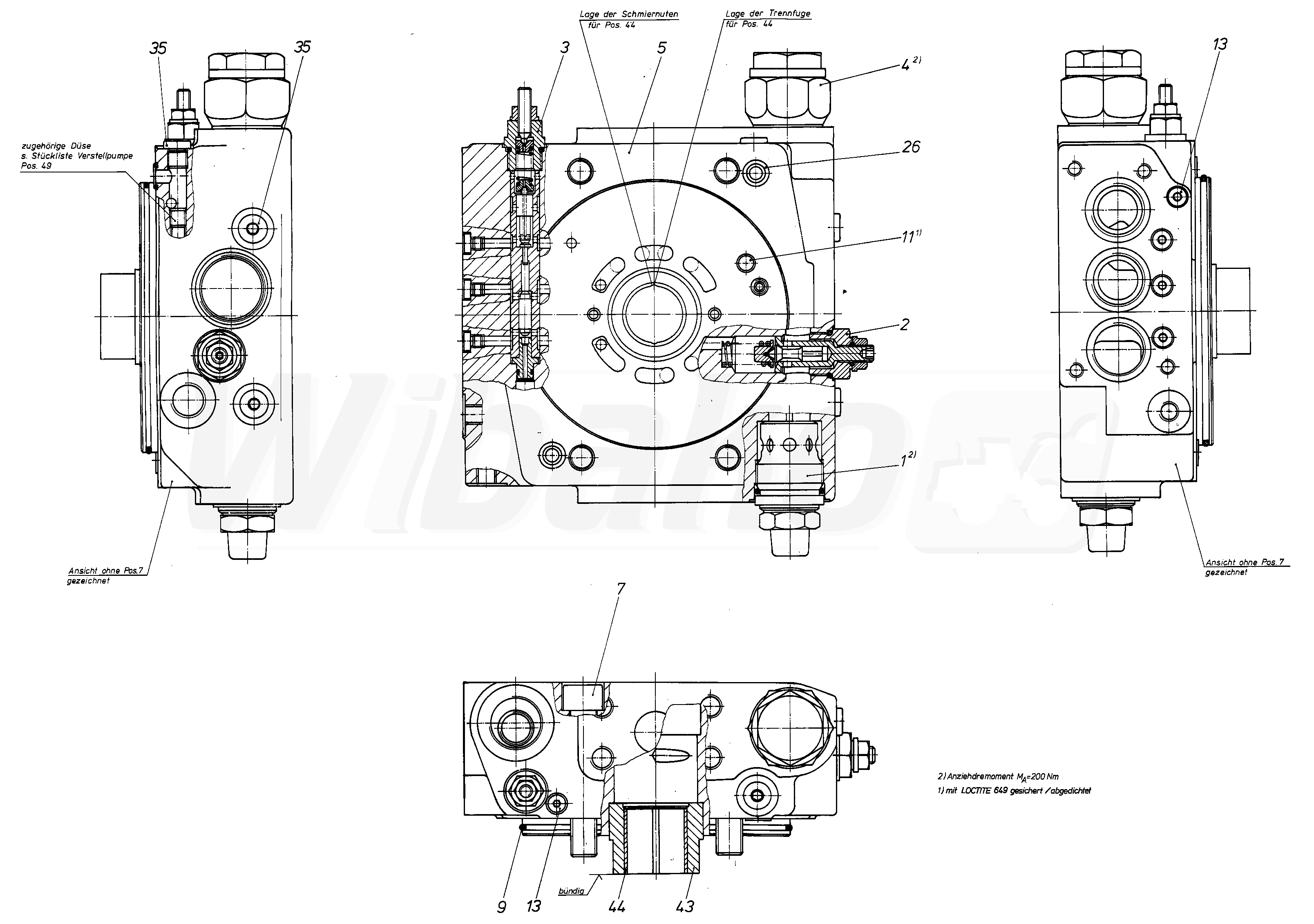

CONNECTION PLATE (53275)

CONNECTION PLATE
(53275)


1

DELIVERY-VALVE ASSEMBLY
(11143)

Group »


2

PRESSURE RELIEF VALVE
(14378)

Group »


3

PRESSURE CUT-OFF VALVE
(11144)

Group »


4

PRESSURE RELIEF VALVE
(24064)

Group »


5

CONNECTION PLATE
(54023)


7

SOCKET HEAD CAP SCREW
(11147)


9

O-RING
(11148)


11

DOUBLE BREAK-OFF PLUG
(19010)


13

SCREW PLUG
(10330)


26

O-RING
(10450)


35

SCREW PLUG
(10190)


43

BUSHING
(11149)


44

BUSHING
(19248)



Return
