EA4VG125HDD1/31W-VZD02N001E (R909438145)

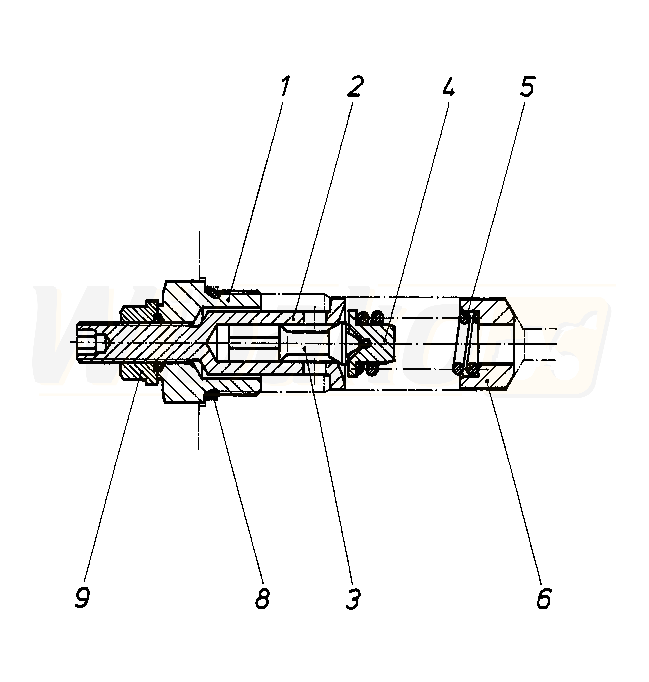

PRESSURE RELIEF VALVE (53283)

PRESSURE RELIEF VALVE
(53283)


1

SCREW PLUG
(10465)


2

ADJUSTING SCREW
(10466)


3

VALVE SPOOL
(10467)


4

SPRING DISK
(10468)


5

COMPRESSION SPRING
(53314)


6

SPRING DISK
(53315)


8

O-RING
(10887)


9

SEALING NUT
(10815)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
