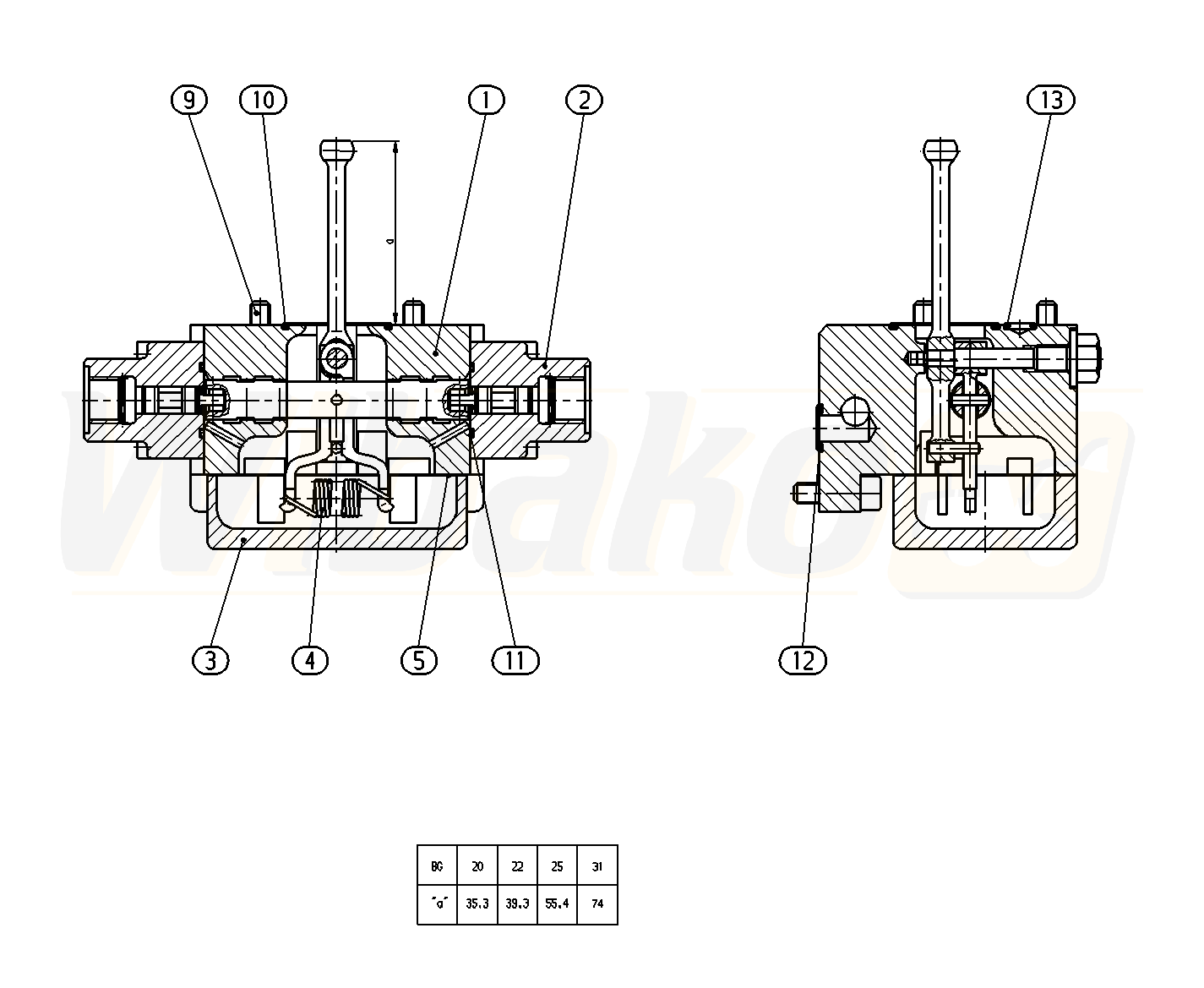

EA4VG125HDD1/31W-VZD02N001E (R909438145)
CONTROL MODULE (48902)

CONTROL MODULE
(48902)


1

CONTROL MODULE
(48903)

Group »


2

CONTROL MODULE ASSEMBLY
(19493)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(20360)


5

SEAL
(13412)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(17022)


11

O-RING
(16592)


12

O-RING
(17023)


13

O-RING
(17015)



Return
