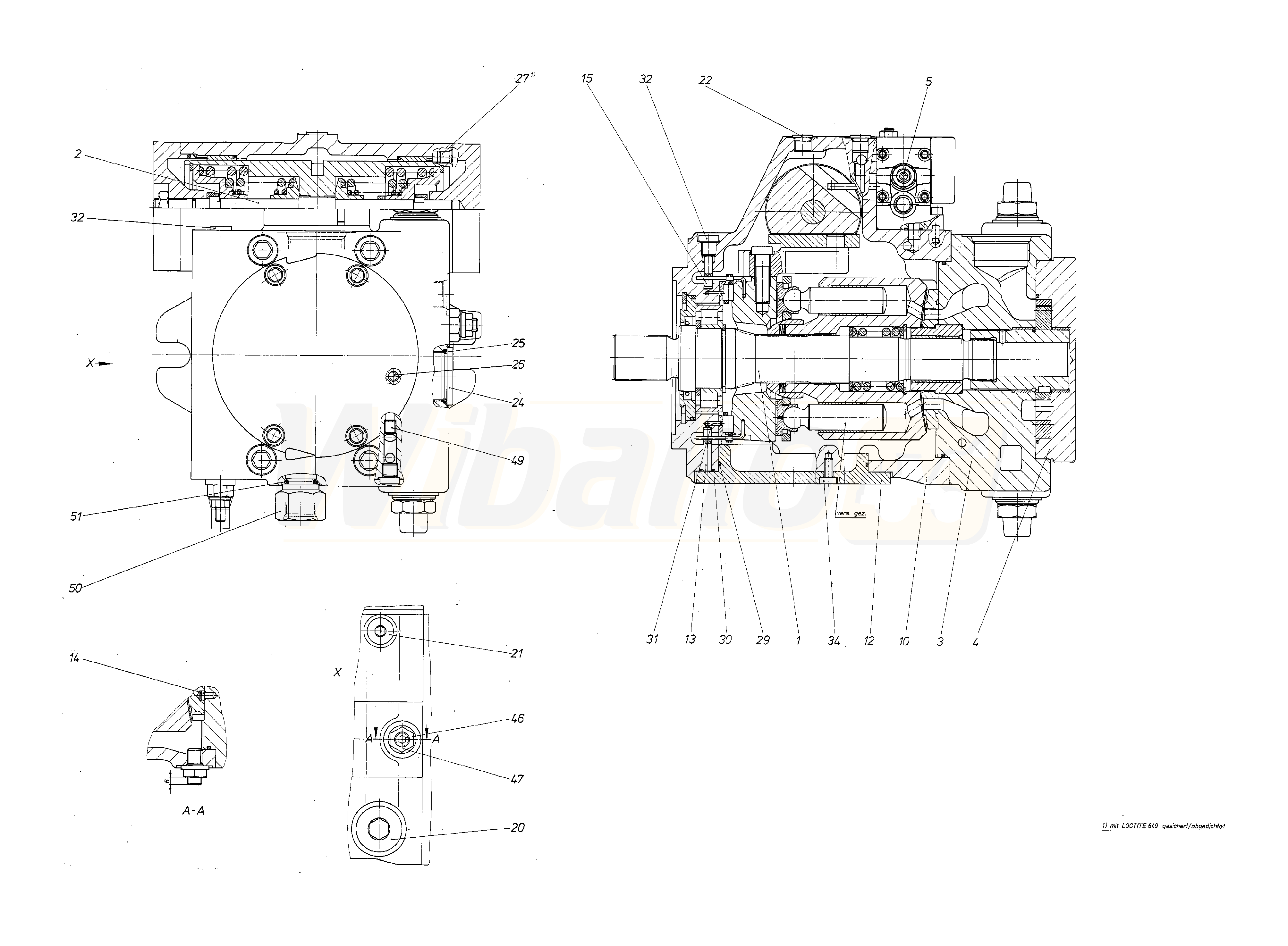

AA4VG125HDD1/31R-PSF60F001D (R909438432)

1

ROTARY GROUP
(53253)

Group »


2

CONTROL
(53255)

Group »


3

CONNECTION PLATE
(53267)

Group »


4

INTERNAL GEAR PUMP
(53288)

Group »


5

CONTROL UNIT
(51994)

Group »


10

HOUSING
(53318)


12

HOUSING COVER
(16505)


13

PIVOT PIN
(16506)


14

POITIONING PIN
(10183)


15

PIVOT PIN
(11100)


20

SCREW PLUG
(19251)


21

SCREW PLUG
(11372)


22

SCREW PLUG
(11370)


24

SCREW PLUG
(13330)


25

O-RING
(11174)


26

SCREW PLUG
(11753)


27

DOUBLE BREAK-OFF PLUG
(19010)


29

O-RING
(31914)


30

QUAD RING
(16507)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10190)


34

SOCKET HEAD CAP SCREW
(10848)


46

SETSCREW
(13380)


47

SEALING NUT
(10399)


49

NOZZLE
(46988)


50

THREADED PART
(40590)


51

O-RING
(10470)


98

SEAL KIT
(53320)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
