A4VG125HDM1/31L-PSF02XXX1S-S (R909446263)

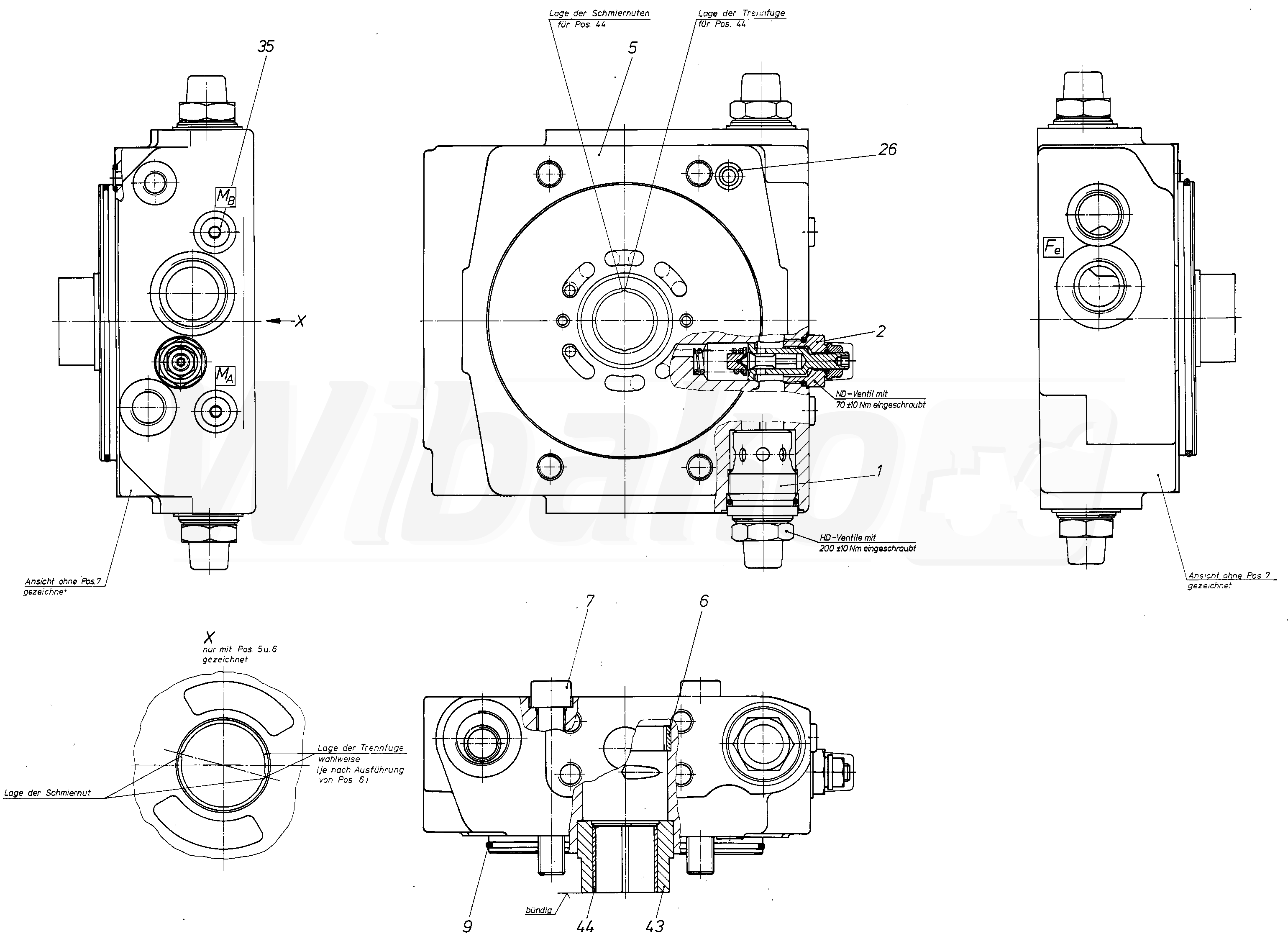

CONNECTION PLATE (53377)

CONNECTION PLATE
(53377)


1

DELIVERY-VALVE ASSEMBLY
(11143)

Group »


2

PRESSURE RELIEF VALVE
(44663)

Group »


5

CONNECTION PLATE
(54028)


6

BUSHING
(19247)


7

SOCKET HEAD CAP SCREW
(11147)


9

O-RING
(11148)


26

O-RING
(10450)


35

SCREW PLUG
(10190)


43

BUSHING
(11149)


44

BUSHING
(19248)



Return
