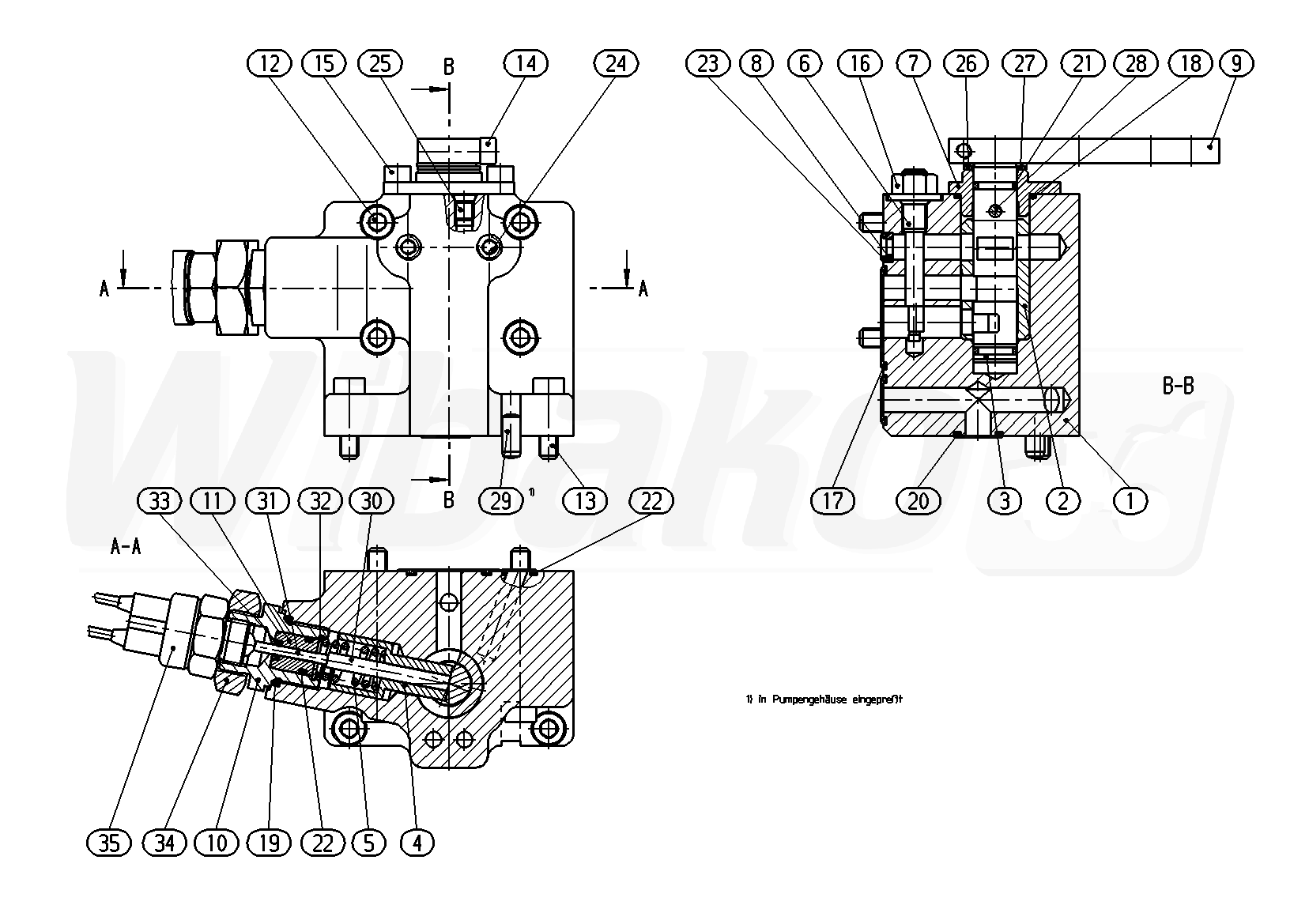

AA4VG125HWD1/31L-PSF52F001S-S (R909448758)
CONTROL MODULE (53459)

CONTROL MODULE
(53459)


1

HOUSING
(43329)


2

CONTROL SLEEVE
(43330)


3

CONTROL SHAFT
(43331)


4

SPRING BUSH
(54062)


5

COMPRESSION SPRING
(12728)


6

ECCENTRIC PIN
(14567)


7

COVER
(43333)


8

RING
(32868)


9

LEVER
(12681)


10

NECK
(32869)


11

SEAL BUSHING
(43413)


12

SOCKET HEAD CAP SCREW
(10505)


13

SOCKET HEAD CAP SCREW
(10506)


14

SOCKET HEAD CAP SCREW
(10698)


15

SOCKET HEAD CAP SCREW
(12810)


16

SEALING NUT
(10215)


17

O-RING
(10508)


18

O-RING
(10509)


19

O-RING
(10771)


20

O-RING
(10450)


21

O-RING
(10512)


22

O-RING
(10227)


23

O-RING
(10370)


24

SETSCREW
(43334)


25

DOUBLE BREAK-OFF PLUG
(18990)


26

RETAINING RING
(25622)


27

SHIM RING
(17166)


28

NEEDLE-ROLLER
(23340)


29

STRAIGHT PIN
(12694)


30

STRAIGHT PIN
(43414)


31

NEEDLE-ROLLER
(54063)


32

RETAINING RING
(11447)


33

O-RING
(12499)


34

HEXAGON NUT
(21136)


35

SWITCH
(21677)
