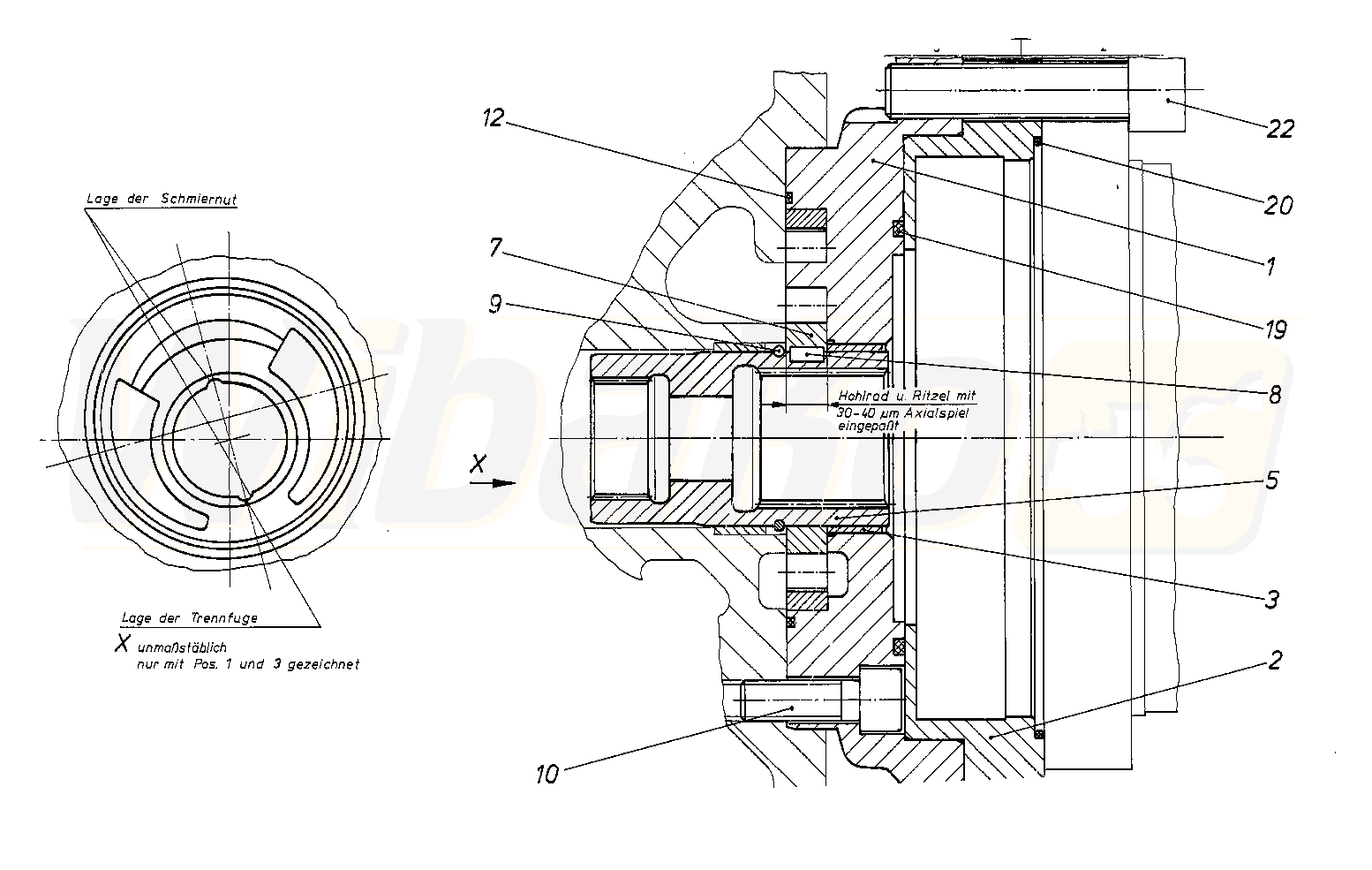

A4VG125HD/31+A4VG90HD/31 (R909448976)
INTERNAL GEAR PUMP (53498)

INTERNAL GEAR PUMP
(53498)


1

INTERMEDIATE FLANGE
(54069)


2

INTERMEDIATE FLANGE
(47331)


3

BUSHING
(19095)


5

THROUGH DRIVE SHAFT
(47332)


7

WHEEL SET
(10489)


8

PARALLEL KEY
(10490)


9

SNAP RING
(10491)


10

SOCKET HEAD CAP SCREW
(12934)


12

O-RING
(10461)


19

O-RING
(12935)


20

O-RING
(28120)


22

SOCKET HEAD CAP SCREW
(12304)



Return
