A4VG125HWD1/31L-NZF02F001S-S (R909600614)

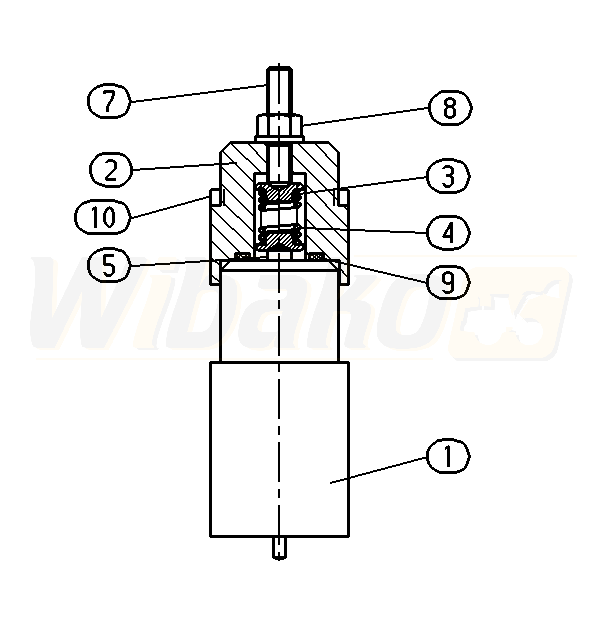

PROPORTIONAL SOLENOID (53547)

PROPORTIONAL SOLENOID
(53547)


1

PROPORTIONAL SOLENOID
(54088)


2

COVER
(54089)


3

SPRING DISK
(54090)


4

COMPRESSION SPRING
(54083)


5

STRAIGHT PIN
(54091)


7

SETSCREW
(11351)


8

SEALING NUT
(10369)


9

O-RING
(10771)


10

SOCKET HEAD CAP SCREW
(54092)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
