AA4VG125HDD1/32R-NSF52F001D-S (R909609016)

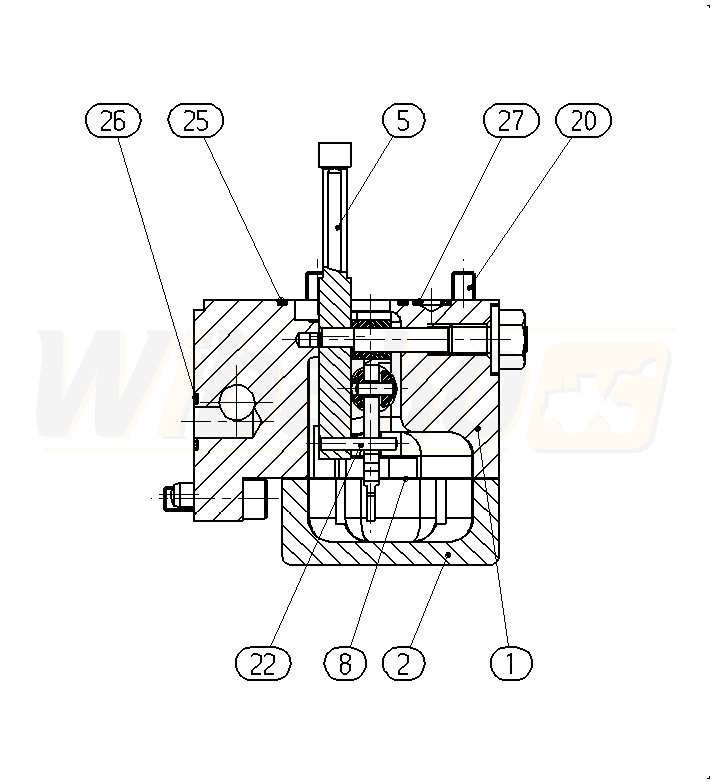

CONTROL UNIT (51995)

CONTROL UNIT
(51995)


1

CONTROL HOUSING
(51996)

Group »


2

COVER
(13413)


5

FEEDBACK LEVER
(18022)


8

SEAL
(13412)


20

SOCKET HEAD CAP SCREW
(12219)


25

O-RING
(10508)


26

O-RING
(10512)


27

O-RING
(10370)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
