A4VG105HD3DT1/32R+A4VG56EP3DM/32R+AZPN- (R902215196)

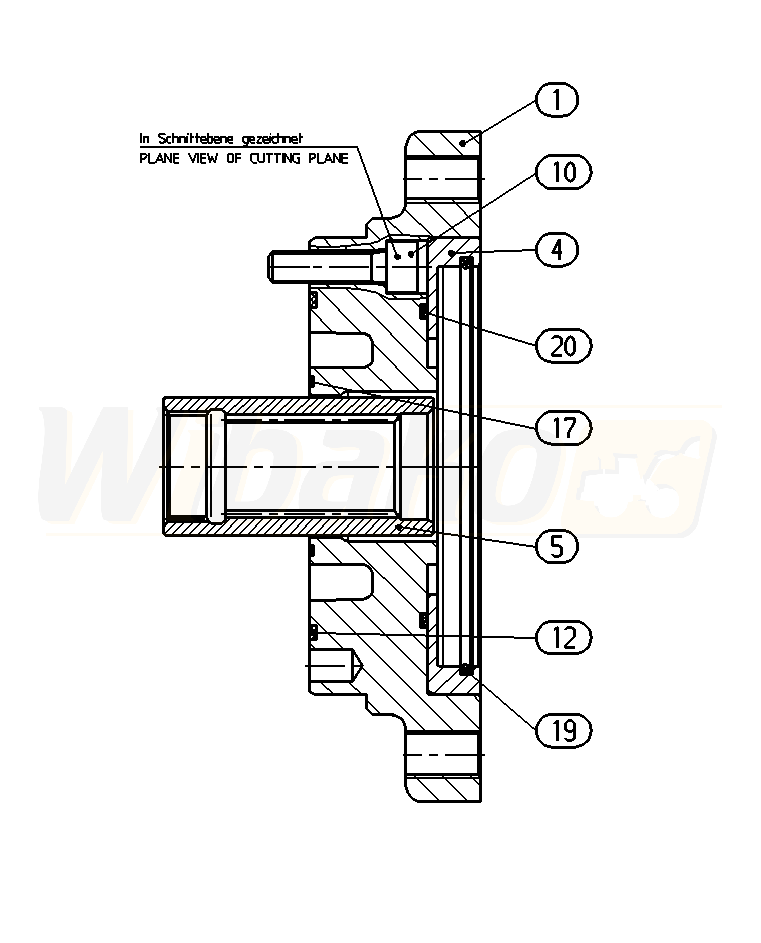

BELL HOUSING (27030)

BELL HOUSING
(27030)


1

INTERMEDIATE FLANGE
(25408)


4

INTERMEDIATE RING
(12257)


5

THROUGH DRIVE COUPLING
(18505)


10

SOCKET HEAD CAP SCREW
(12259)


12

O-RING
(10993)


17

O-RING
(26865)


19

O-RING
(26141)


20

BURL SEAL RING
(26145)



Return
