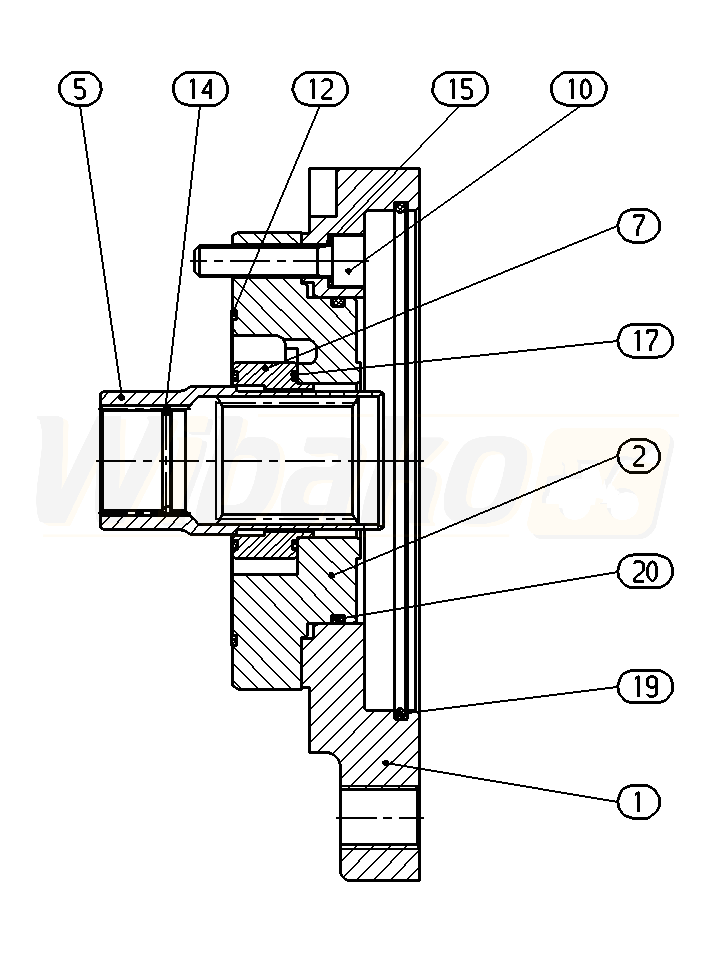

A4VG180EP2/31+A4VG56EP2/31 (R909447575)
BELL HOUSING (55492)

BELL HOUSING
(55492)


1

INTERMEDIATE FLANGE
(21272)


2

PUMP COVER
(55732)


5

THROUGH DRIVE COUPLING
(55733)


7

SEAL RING
(55734)


10

SOCKET HEAD CAP SCREW
(10898)


12

KANTSEAL
(26142)


14

SNAP RING
(10899)


15

SEAL RING
(10991)


17

O-RING
(26865)


19

O-RING
(13635)


20

O-RING
(10431)
