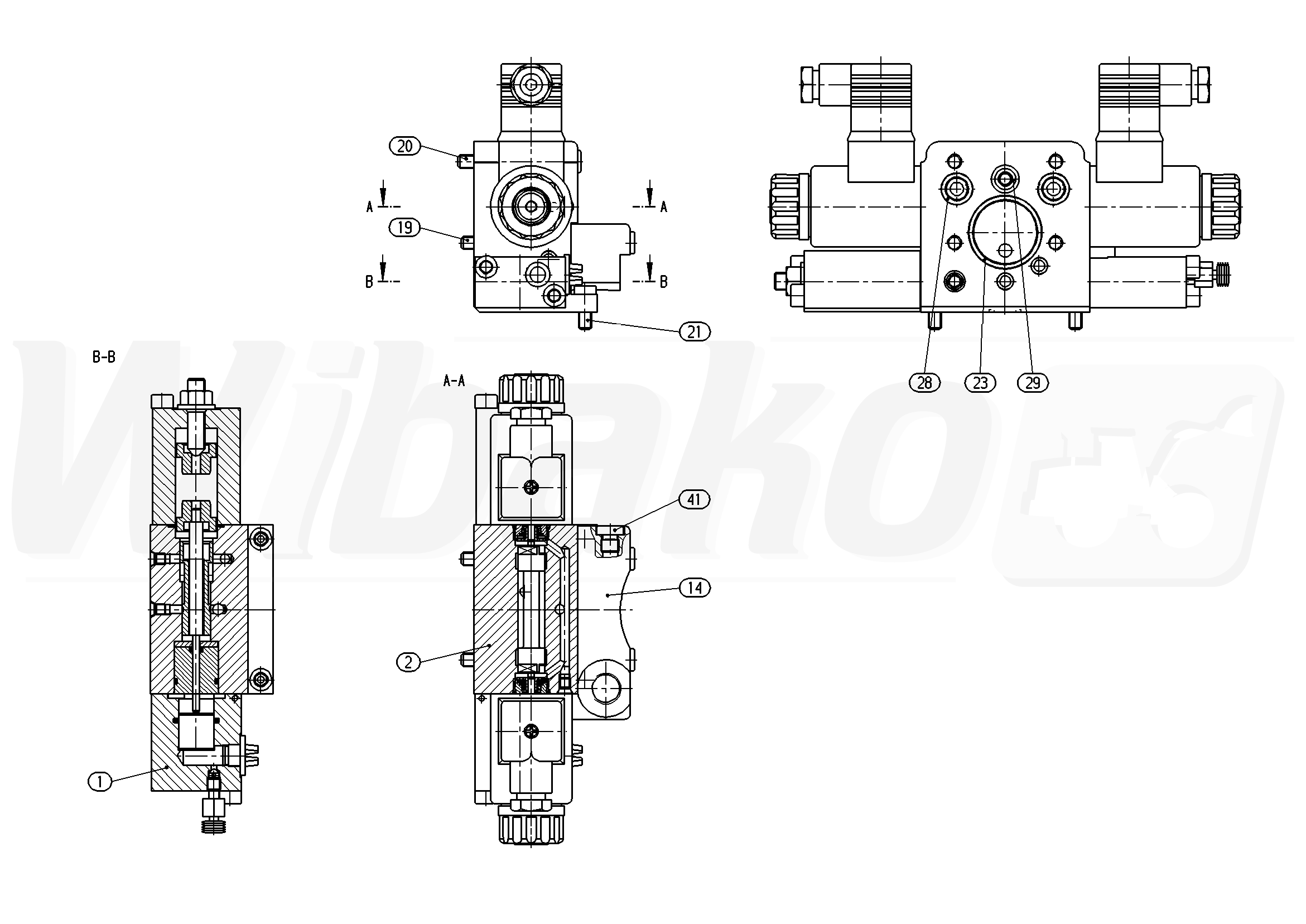

A4VG125DA1DX/32R-NZF02F041SH-S (R902074055)
INCHING VALVE (56723)

INCHING VALVE
(56723)


1

INCHING DEVICE
(12916)

Group »


2

DIRECTIONAL-CONTROL VALVE
(56724)

Group »


14

CONNECTION COVER
(44451)


19

SOCKET HEAD CAP SCREW
(19525)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(13198)


23

O-RING
(10508)


28

O-RING
(10512)


29

O-RING
(10227)


41

SCREW PLUG
(14277)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
