A4VG125HD1DTM2/32L-PAF02K021E-S (R902118441)

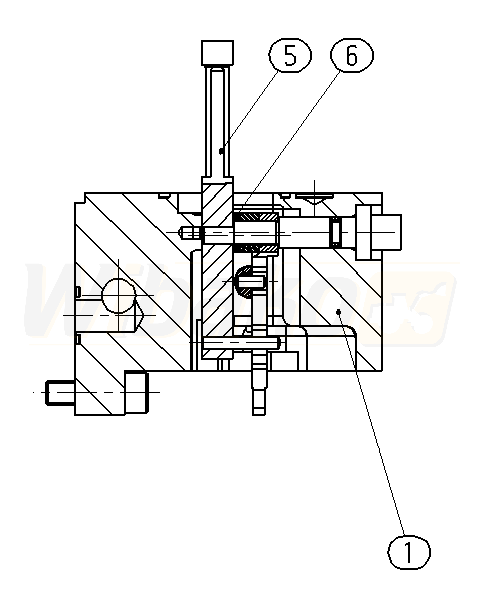

BASIC UNIT (48789)

BASIC UNIT
(48789)


1

CONTROL HOUSING
(48790)

Group »


5

FEEDBACK LEVER
(13411)


6

WASHER
(13416)


6

WASHER
(13417)


6

WASHER
(13418)


6

WASHER
(13419)


6

WASHER
(13420)


6

WASHER
(13421)


6

WASHER
(13422)


6

WASHER
(13423)


6

WASHER
(13424)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
