A11VO95DR/10+A4VG90DA2/32 (R902056161)

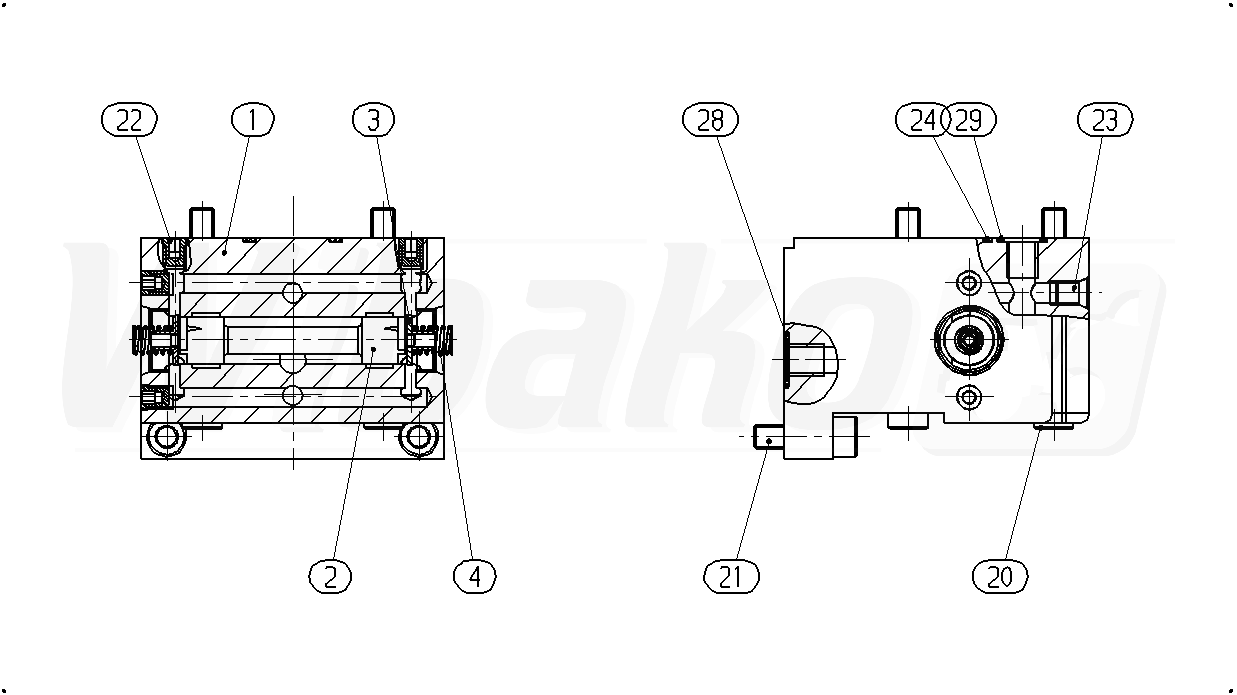

VALVE HOUSING (14997)

VALVE HOUSING
(14997)


1

VALVE HOUSING
(14998)


2

CONTROL PISTON
(12920)


3

SPRING DISK
(13196)


4

COMPRESSION SPRING
(10496)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(10506)


22

PLUG
(11172)


23

DOUBLE BREAK-OFF PLUG
(18990)


24

O-RING
(10508)


28

O-RING
(10512)


29

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
