A11VO95DRS/10+A4VG90EP2/32 (R902085850)

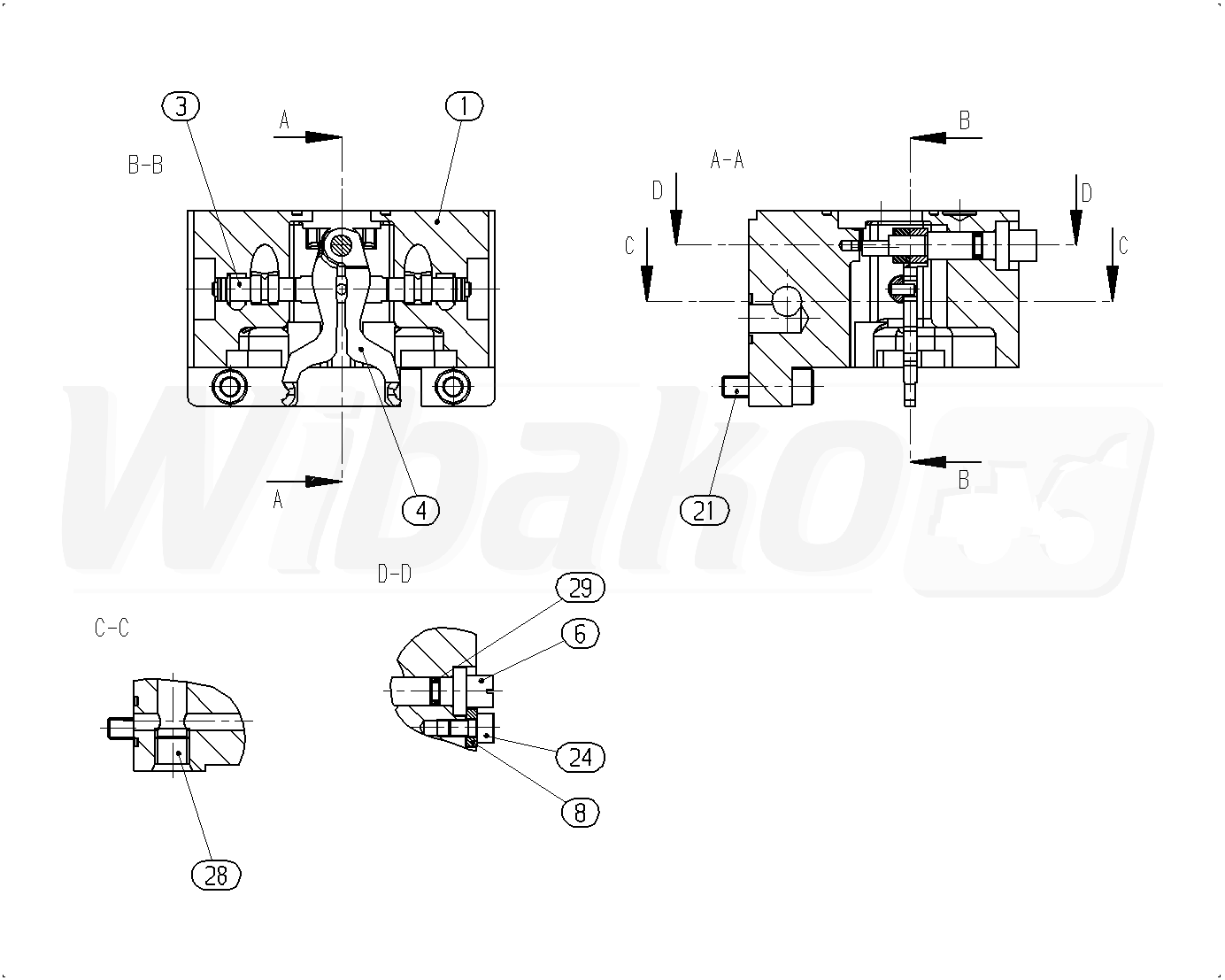

CONTROL HOUSING (32408)

CONTROL HOUSING
(32408)


1

HOUSING
(15515)


3

CONTROL PISTON
(15516)


4

LEVER PAIR
(13407)


6

ECCENTRIC PIN
(13408)


8

WASHER
(13410)


21

SOCKET HEAD CAP SCREW
(10506)


24

SOCKET HEAD CAP SCREW
(13425)


28

DOUBLE BREAK-OFF PLUG
(19010)


29

O-RING
(32618)
