A11VO95LR3DS/10+A4VG90DA1/32 (R902017413)

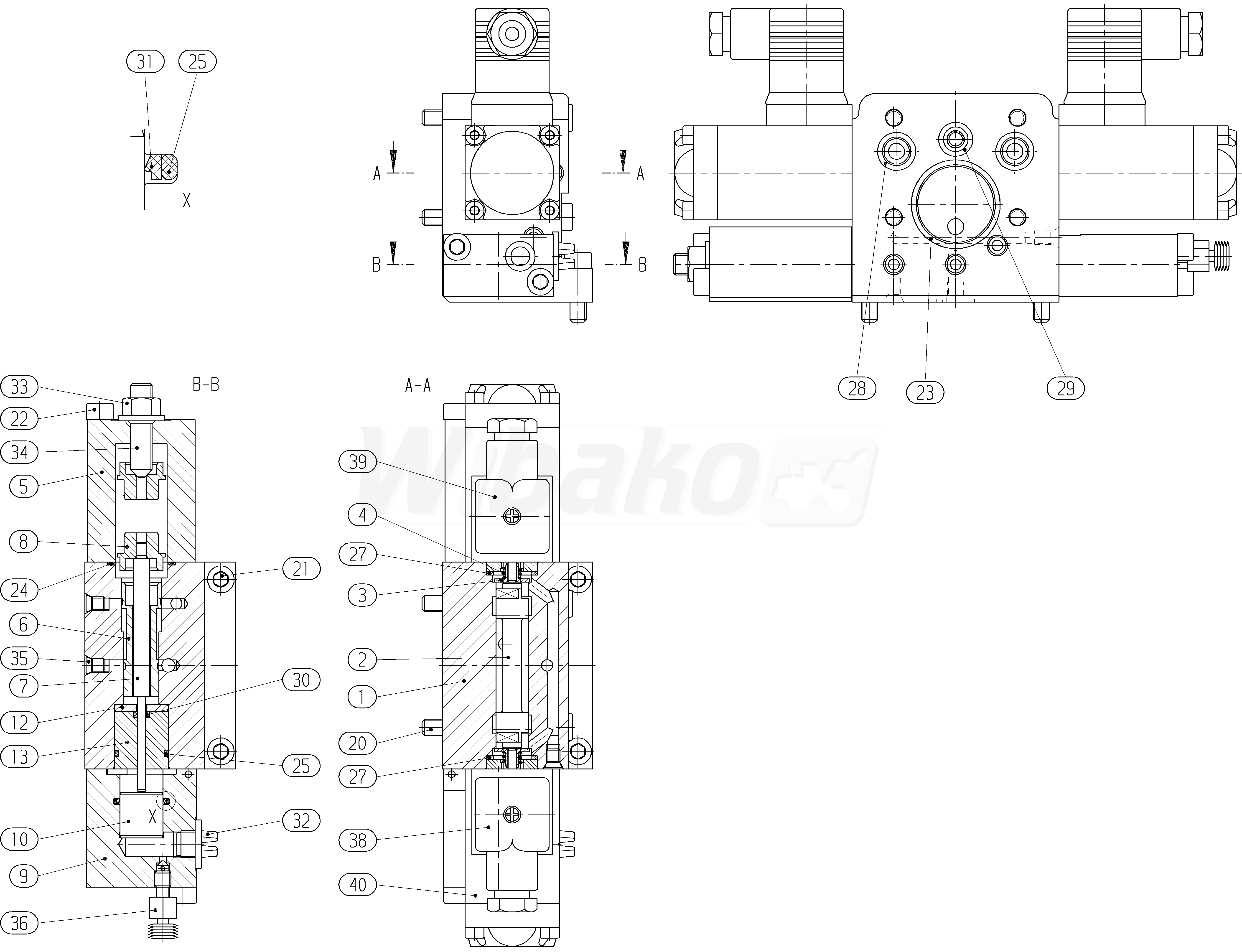

INCHING DEVICE (10390)

INCHING DEVICE
(10390)


1

VALVE HOUSING
(10493)


2

CONTROL PISTON
(10494)


3

SPRING DISK
(10495)


4

COMPRESSION SPRING
(10496)


5

SPRING HOUSING
(10497)

Group »


6

CONTROL PISTON
(10498)


7

GUIDE ROD
(10499)


8

SPRING DISK
(10500)


9

HOUSING COVER
(11440)


10

PISTON
(10502)


12

WASHER
(10503)


13

SEAL BUSHING
(10504)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(10506)


22

SOCKET HEAD CAP SCREW
(10507)


23

O-RING
(10508)


24

O-RING
(10509)


25

O-RING
(10510)


27

O-RING
(10511)


28

O-RING
(10512)


29

O-RING
(10227)


30

O-RING
(10513)


31

ROD SEAL
(10514)


32

SEAL SCREW
(10515)


33

SEALING NUT
(10215)


34

SETSCREW
(10516)


35

DOUBLE BREAK-OFF PLUG
(19008)


36

BLEEDER VALVE
(10517)


38

PLUG-IN CONNECTOR
(10518)


39

PLUG-IN CONNECTOR
(10519)


40

SWITCHING SOLENOID
(10520)

Group »



Return
