A4VG180EP2/32+A4VG90EP2/32+A11VO75DRG/ (R902104359)

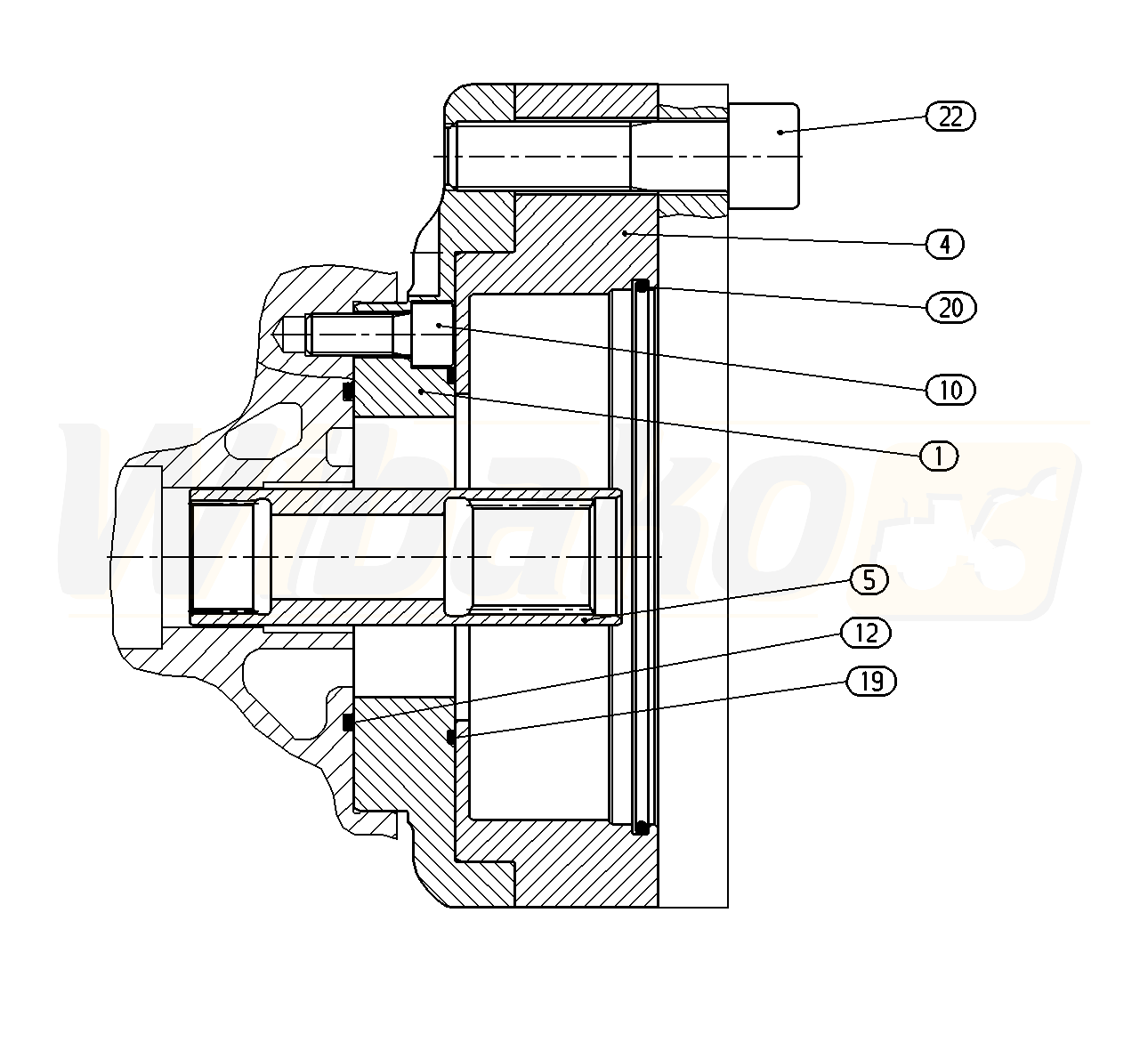

BELL HOUSING (56865)

BELL HOUSING
(56865)


1

INTERMEDIATE FLANGE
(40234)


4

INTERMEDIATE FLANGE
(56899)


5

THROUGH DRIVE COUPLING
(56900)


10

SOCKET HEAD CAP SCREW
(12934)


19

O-RING
(12935)


20

O-RING
(26346)


22

SOCKET HEAD CAP SCREW
(40237)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
