A4VG125DA1D2/32R+A11VO75DRS/10R (R902193908)

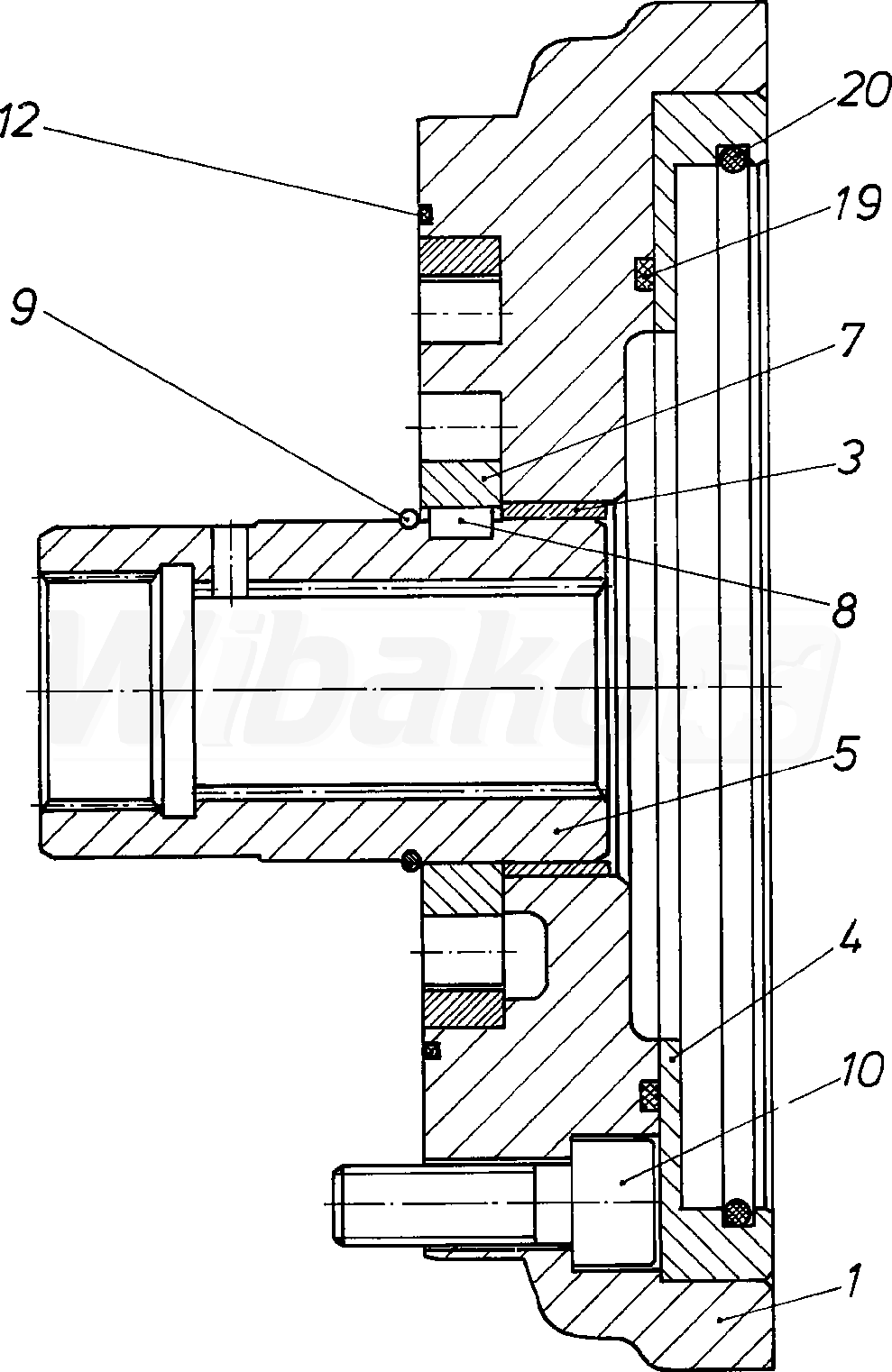

INTERNAL GEAR PUMP (19195)

INTERNAL GEAR PUMP
(19195)


1

INTERMEDIATE FLANGE
(15507)


3

BUSHING
(19247)


4

INTERMEDIATE RING
(13398)


5

THROUGH DRIVE SHAFT
(16313)


7

WHEEL SET
(11163)


8

PARALLEL KEY
(11164)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(11166)


12

KANTSEAL
(14379)


19

BURL SEAL RING
(45173)


20

O-RING
(26346)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
