A4VG125DA1D3/31R-PZF02F041S (R909441665)

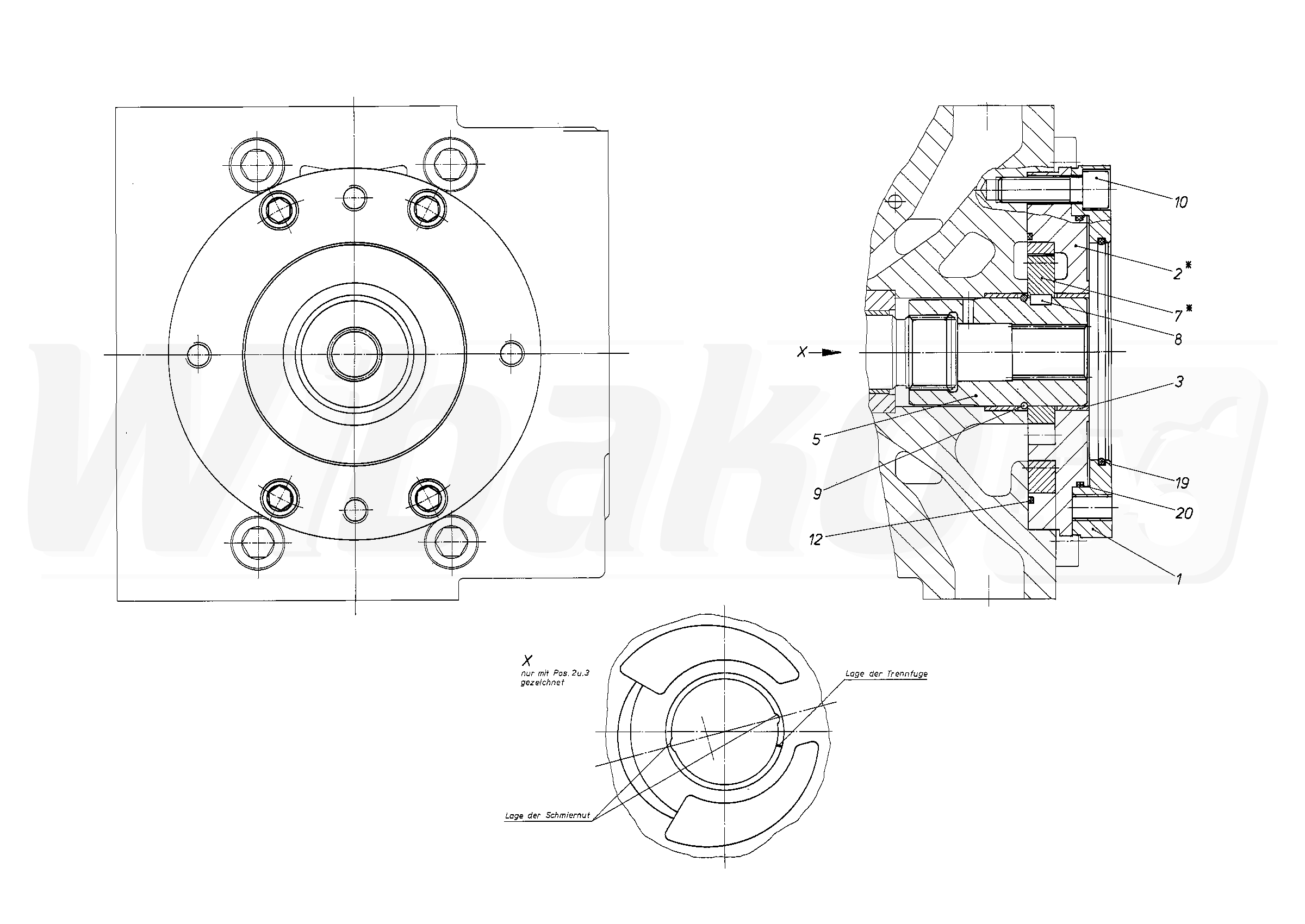

INTERNAL GEAR PUMP (44734)

INTERNAL GEAR PUMP
(44734)


1

INTERMEDIATE FLANGE
(44947)


2

PUMP COVER
(44948)


3

BUSHING
(19247)


5

THROUGH DRIVE SHAFT
(44954)


7

WHEEL SET
(11163)


8

PARALLEL KEY
(44955)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(13191)


12

KANTSEAL
(14379)


19

O-RING
(10992)


20

O-RING
(12674)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
