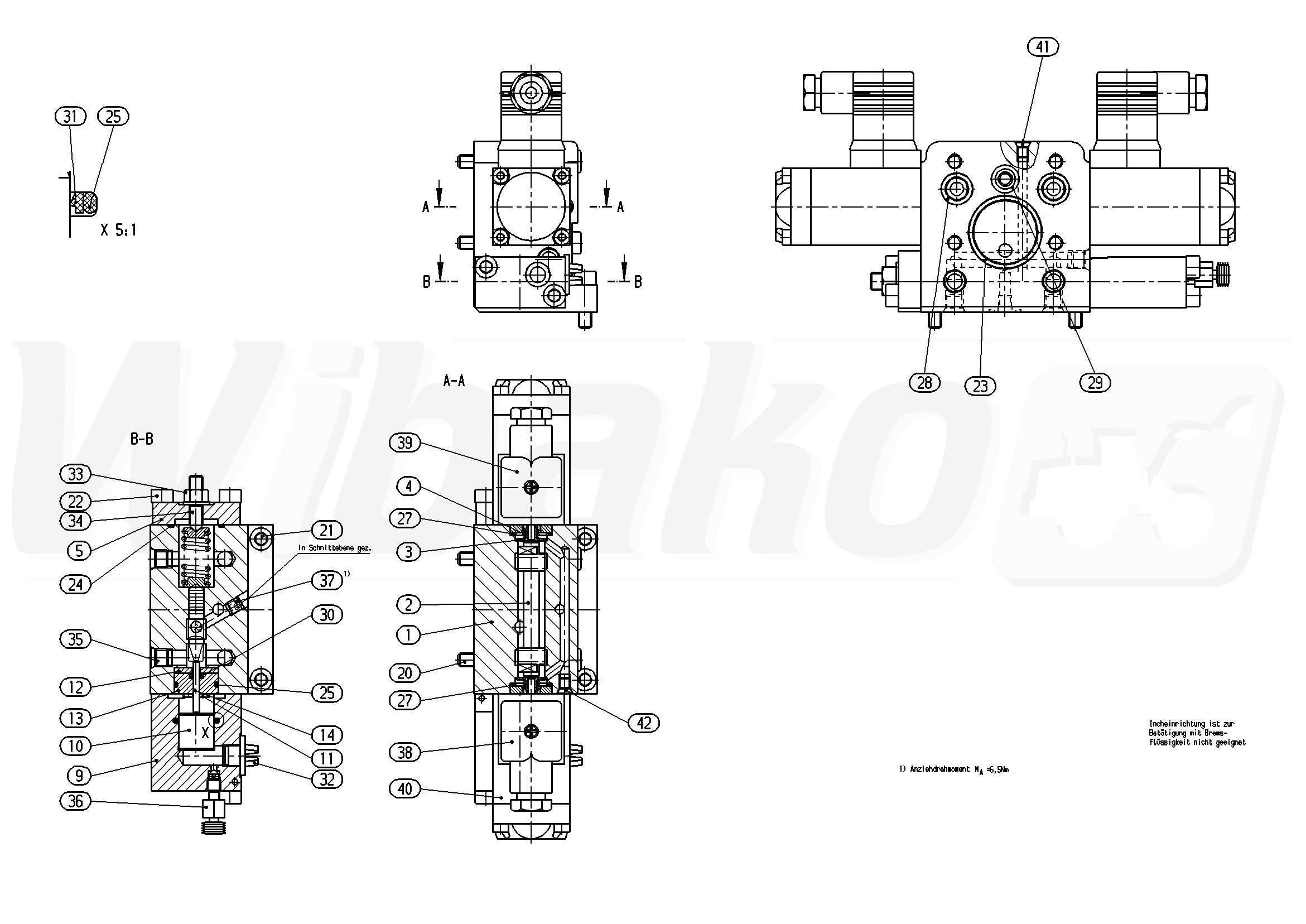

A4VG90DA2D8/32R-NAF02FXX1L-S (R902032119)
INCHING DEVICE (58099)

INCHING DEVICE
(58099)


1

VALVE HOUSING
(58127)


2

CONTROL PISTON
(10494)


3

SPRING DISK
(10495)


4

COMPRESSION SPRING
(10496)


5

SPRING HOUSING
(58128)


9

HOUSING COVER
(11440)


10

PISTON
(10502)


12

WASHER
(10503)


13

SEAL BUSHING
(10907)


14

STRAIGHT PIN
(10908)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(10506)


22

SOCKET HEAD CAP SCREW
(11185)


23

O-RING
(10508)


24

O-RING
(10509)


25

O-RING
(10247)


27

O-RING
(10511)


28

O-RING
(10512)


29

O-RING
(10227)


30

O-RING
(12499)


31

ROD SEAL
(10514)


32

SEAL SCREW
(10515)


33

SEALING NUT
(10369)


34

SETSCREW
(10909)


35

DOUBLE BREAK-OFF PLUG
(19009)


36

BLEEDER VALVE
(10517)


37

PLUG
(11172)


38

PLUG-IN CONNECTOR
(10518)


39

PLUG-IN CONNECTOR
(10519)


40

SWITCHING SOLENOID
(10792)

Group »


41

DOUBLE BREAK-OFF PLUG
(18990)


42

DOUBLE BREAK-OFF PLUG
(19008)



Return
