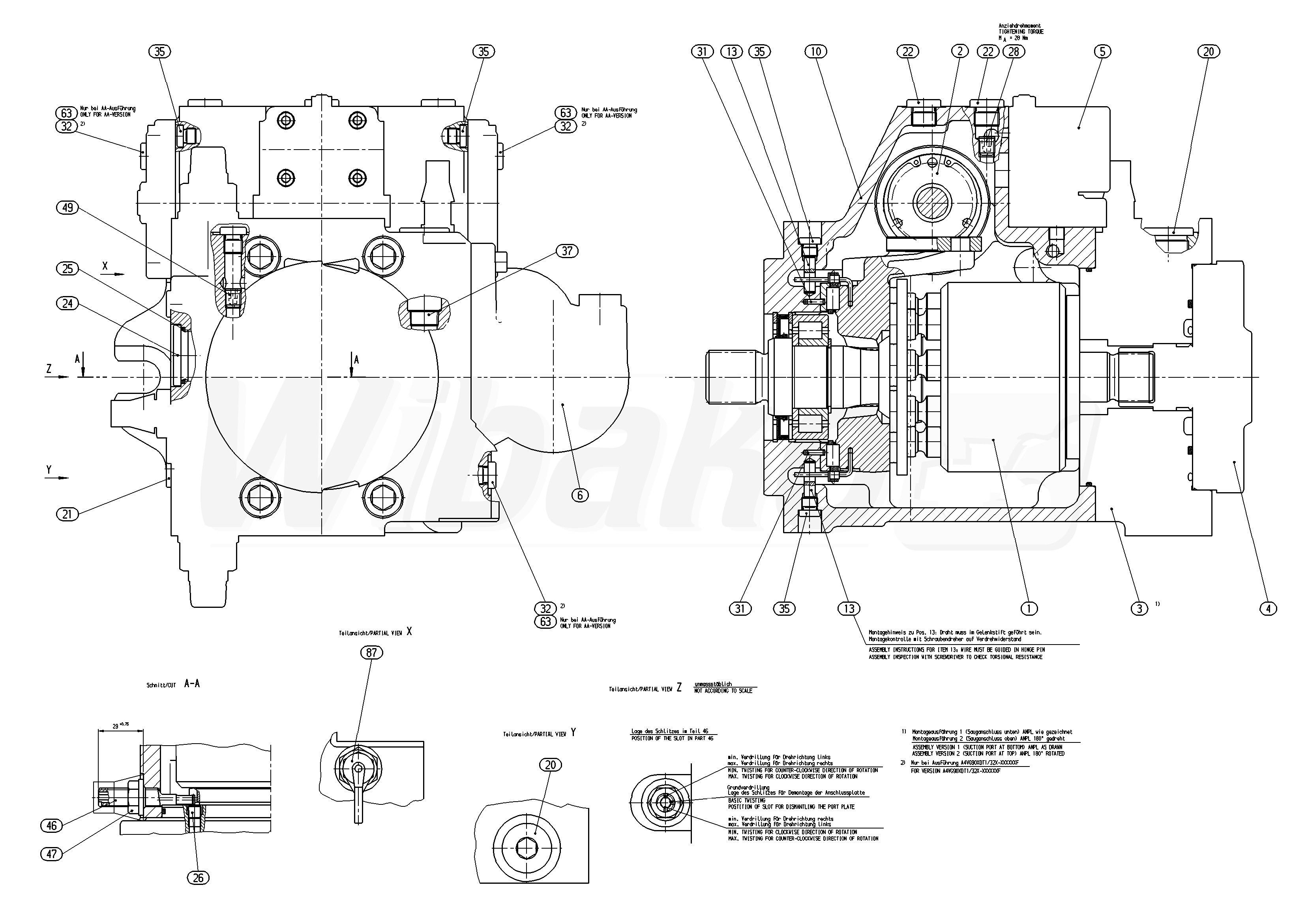

A4VG90DWDT1/32R-VAF02F013F-S (R902137390)

Axial piston variable pump A4VG. Geometric displacement 90 cm3. Pressure cut-off. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise.
1

ROTARY GROUP
(55280)

Group »


2

CONTROL
(16986)

Group »


3

CONNECTION PLATE
(16987)

Group »


4

INTERNAL GEAR PUMP
(16988)

Group »


5

CONTROL UNIT
(58375)

Group »


6

FILTER
(16990)

Group »


10

HOUSING
(10392)


13

PIVOT PIN
(10393)


20

SCREW PLUG
(12336)


21

SCREW PLUG
(11292)


22

SCREW PLUG
(15306)


24

SCREW PLUG
(12195)


25

O-RING
(27730)


26

SCREW PLUG
(11753)


28

NOZZLE
(16992)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(11681)


35

SCREW PLUG
(11659)


37

SCREW PLUG
(10976)


46

ECCENTRIC SCREW
(10398)


47

SEALING NUT
(10399)


49

NOZZLE
(10400)


87

MEASURING CONNECTION
(16994)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
