A4VG90EL1.0R (R909447554)

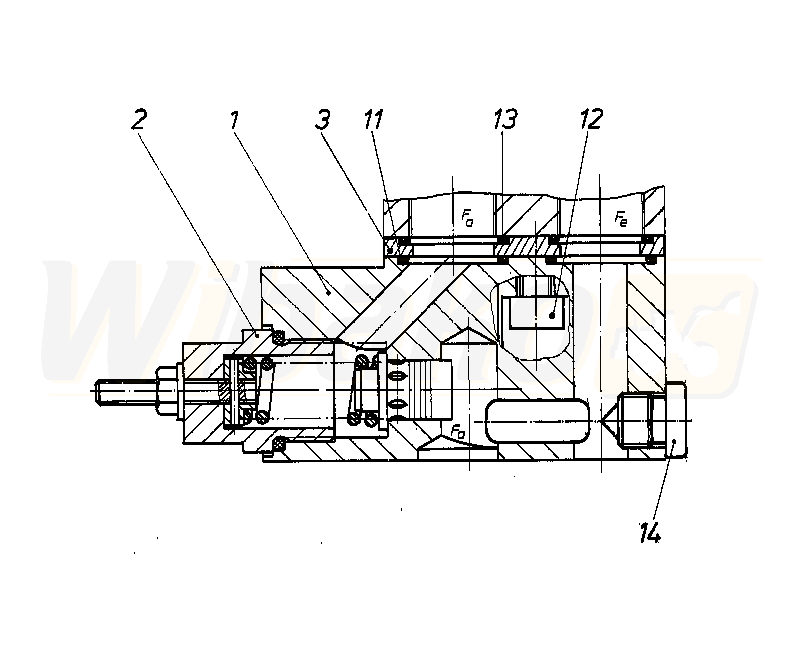

PRESSURE STEPPED VALVE (58503)

PRESSURE STEPPED VALVE
(58503)


1

HOUSING
(58936)


2

PRESSURE RELIEF VALVE
(53217)

Group »


3

INTERMEDIATE PLATE
(58937)


11

O-RING
(11843)


12

SOCKET HEAD CAP SCREW
(10990)


13

O-RING
(10377)


14

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
