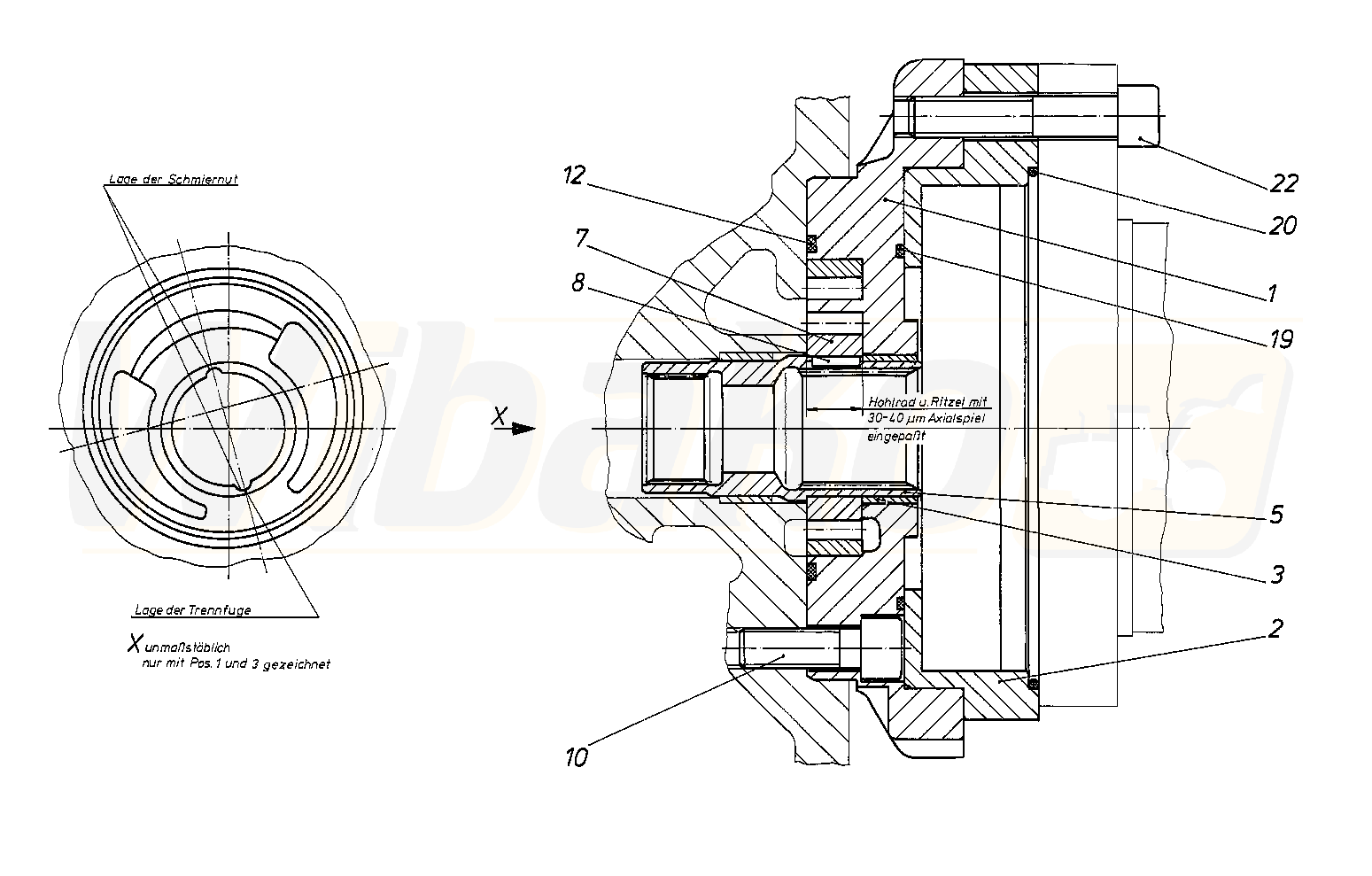

A4VG90DA2D6/31L-PZF02FXX1S-S (R909601127)
INTERNAL GEAR PUMP (58559)

INTERNAL GEAR PUMP
(58559)


1

INTERMEDIATE FLANGE
(58951)


2

INTERMEDIATE FLANGE
(58131)


3

BUSHING
(19095)


5

THROUGH DRIVE SHAFT
(16620)


7

WHEEL SET
(10489)


8

PARALLEL KEY
(16621)


10

SOCKET HEAD CAP SCREW
(12934)


12

O-RING
(10461)


19

O-RING
(12935)


20

O-RING
(33340)


22

SOCKET HEAD CAP SCREW
(12304)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
