A4VG90EP1DM1/32R-NSF02F001F-S (R902040956)

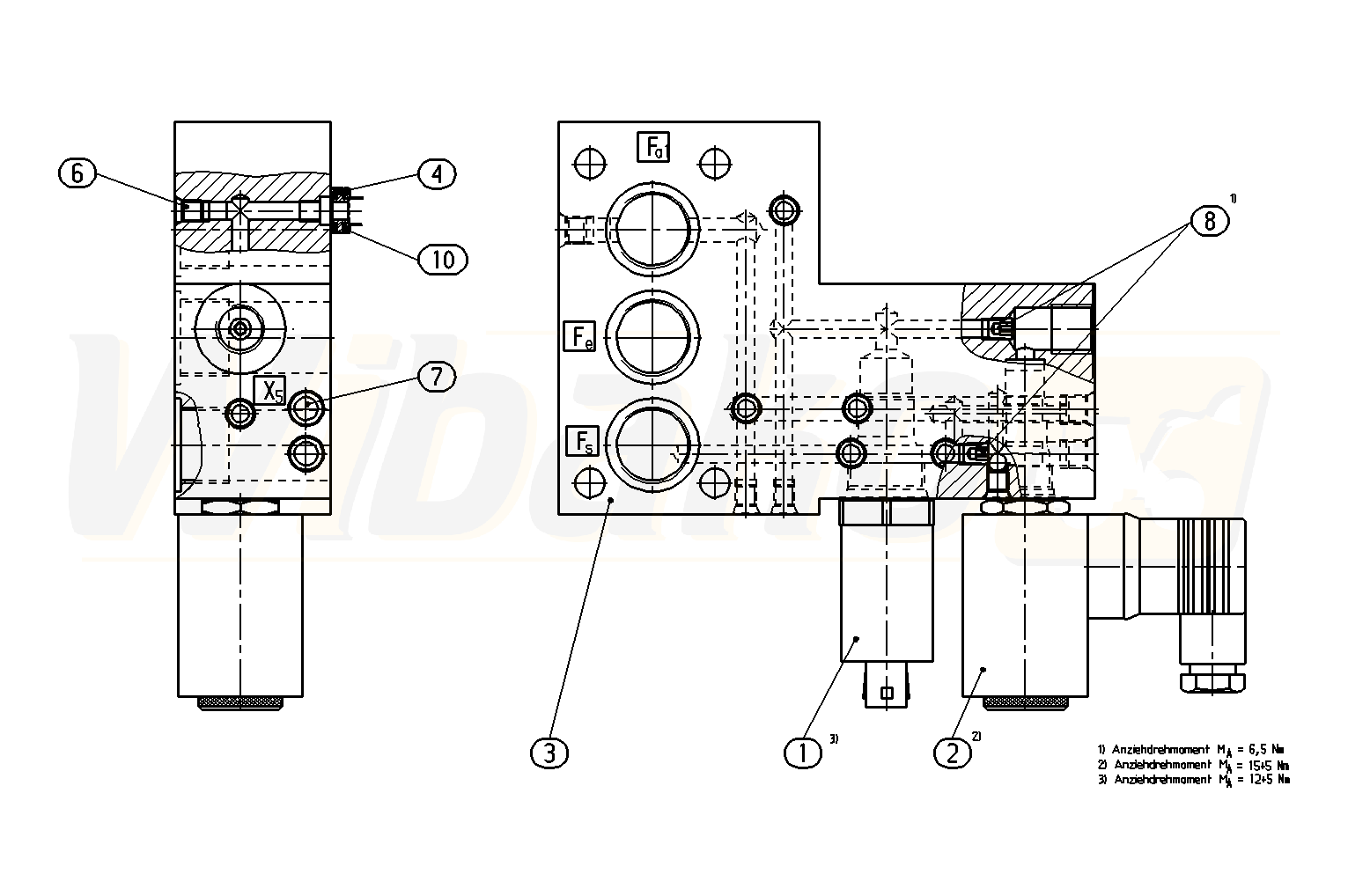

INTERMEDIATE PLATE (58599)

INTERMEDIATE PLATE
(58599)


1

PRESSURE REDUCING VALVE
(22427)


2

SLIDE GATE VALVE
(19615)

Group »


3

HOUSING
(58953)


4

WASHER
(58954)


6

DOUBLE BREAK-OFF PLUG
(18990)


7

DOUBLE BREAK-OFF PLUG
(19009)


8

PLUG
(11172)


10

O-RING
(12860)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
