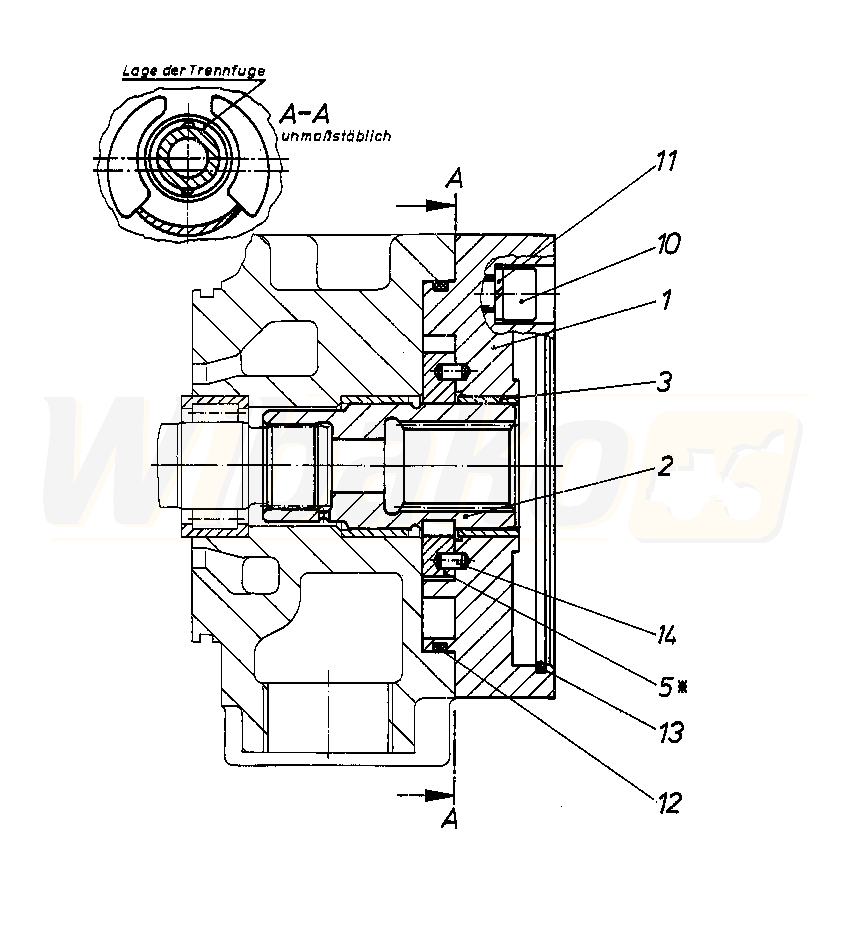

A4VG90EP2/31+A4VG28EP2/30 (R909601535)
BELL HOUSING (58669)

BELL HOUSING
(58669)


1

INTERMEDIATE FLANGE
(58998)


2

THROUGH DRIVE SHAFT
(39709)


3

BUSHING
(18564)


5

RING
(58999)


10

SOCKET HEAD CAP SCREW
(12673)


11

SPRING LOCK WASHER
(10777)


12

O-RING
(10671)


13

O-RING
(12674)


14

STRAIGHT PIN
(59000)
