AA11VO130LG2S/10+AA4VG56DWD/32 (R902028237)

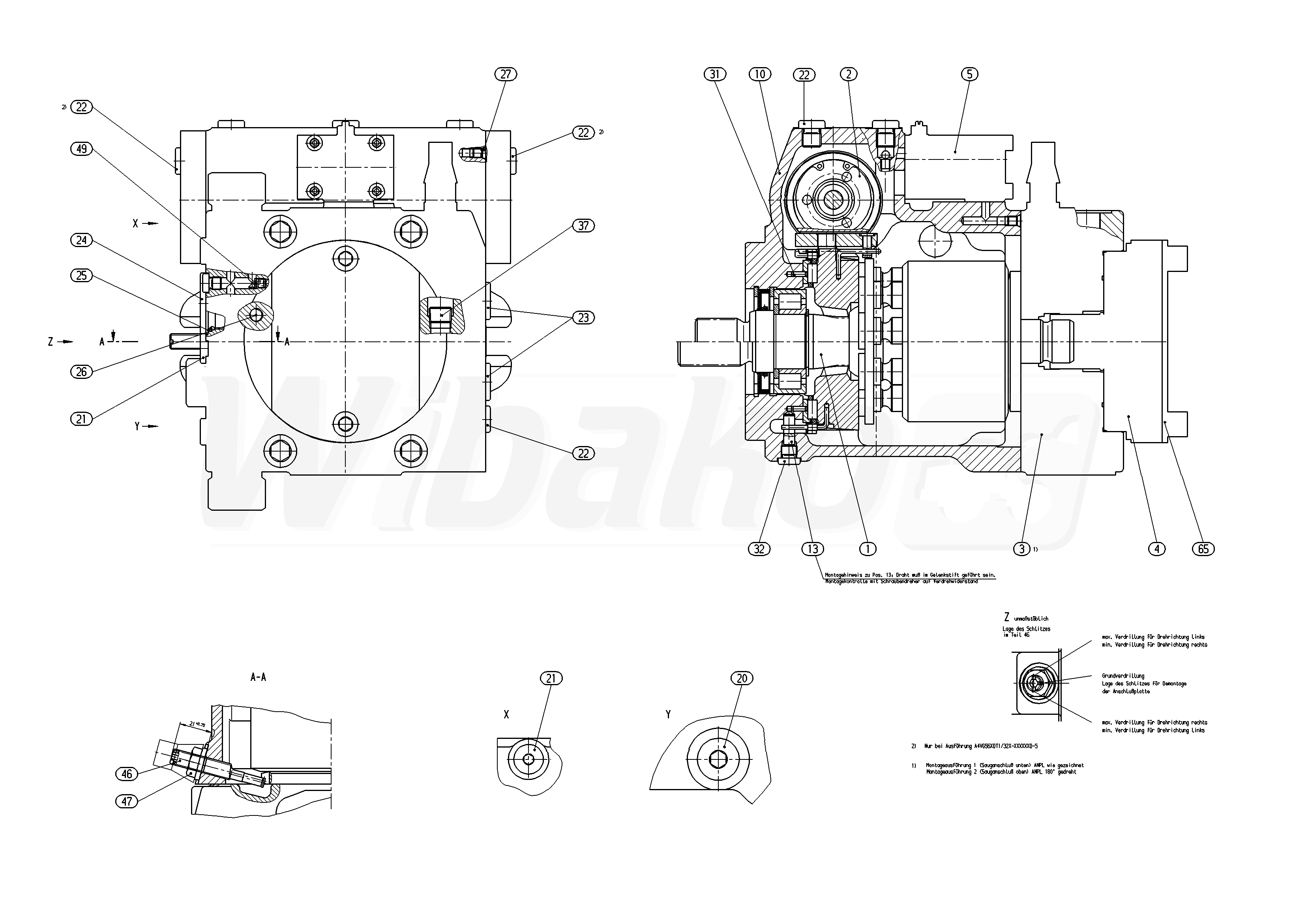

AXIAL-PISTON PUMP (21588)

AXIAL-PISTON PUMP
(21588)


1

ROTARY GROUP
(10808)

Group »


2

CONTROL
(17932)

Group »


3

CONNECTION PLATE
(17933)

Group »


4

INTERNAL GEAR PUMP
(15148)

Group »


5

CONTROL UNIT
(14453)

Group »


10

HOUSING
(15075)


13

PIVOT PIN
(10813)


20

SCREW PLUG
(14354)


21

SCREW PLUG
(11370)


22

SCREW PLUG
(11371)


23

SCREW PLUG
(10090)


24

SCREW PLUG
(12195)


25

O-RING
(10534)


26

SCREW PLUG
(11753)


27

DOUBLE BREAK-OFF PLUG


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10220)


37

SCREW PLUG
(13474)


46

ECCENTRIC SCREW
(10814)


47

SEALING NUT
(10815)


49

PLUG
(12198)


65

COVER
(21589)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
