A4VG90EP2DM1/31R-PZF02F001F-S (R909448109)

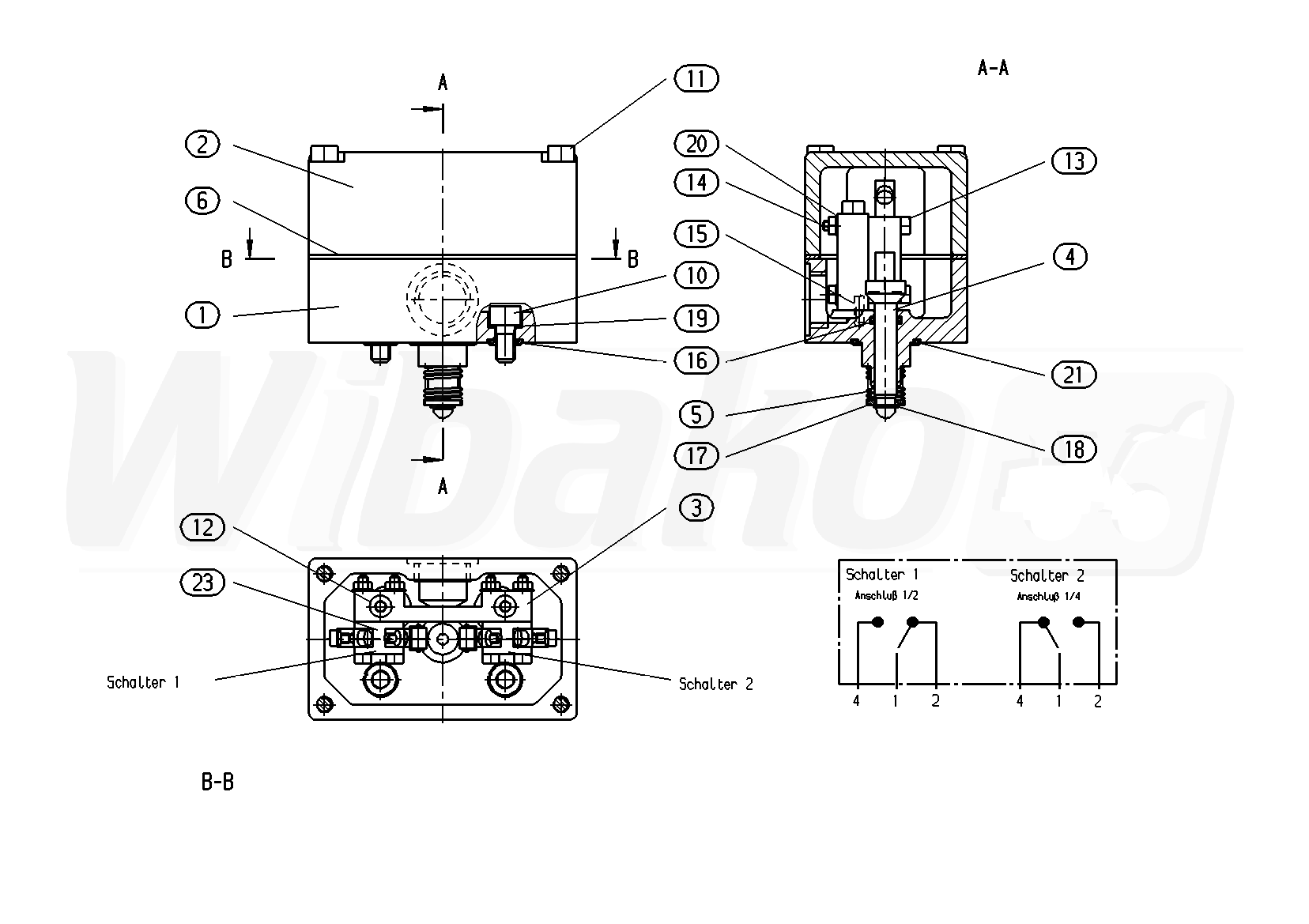

SWITCH ASSEMBLY (59347)

SWITCH ASSEMBLY
(59347)


1

HOUSING
(59943)


2

COVER
(54034)


3

BEARING
(54035)


4

BOLT
(59944)


5

COMPRESSION SPRING
(54037)


6

SEAL
(54038)


10

SOCKET HEAD CAP SCREW
(11791)


11

SOCKET HEAD CAP SCREW
(54039)


12

SOCKET HEAD CAP SCREW
(15444)


13

SOCKET HEAD CAP SCREW
(54040)


14

HEXAGON NUT
(20374)


15

SLOTTED SPRING PIN
(10396)


16

O-RING
(11087)


17

WASHER
(54041)


18

SNAP RING
(56470)


19

SEAL RING
(12275)


20

WASHER
(16411)


21

O-RING
(12696)


23

MICRO-SWITCH
(54042)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
