A4VG90EP2D2/31L-PZF02F001S-S (R909601398)

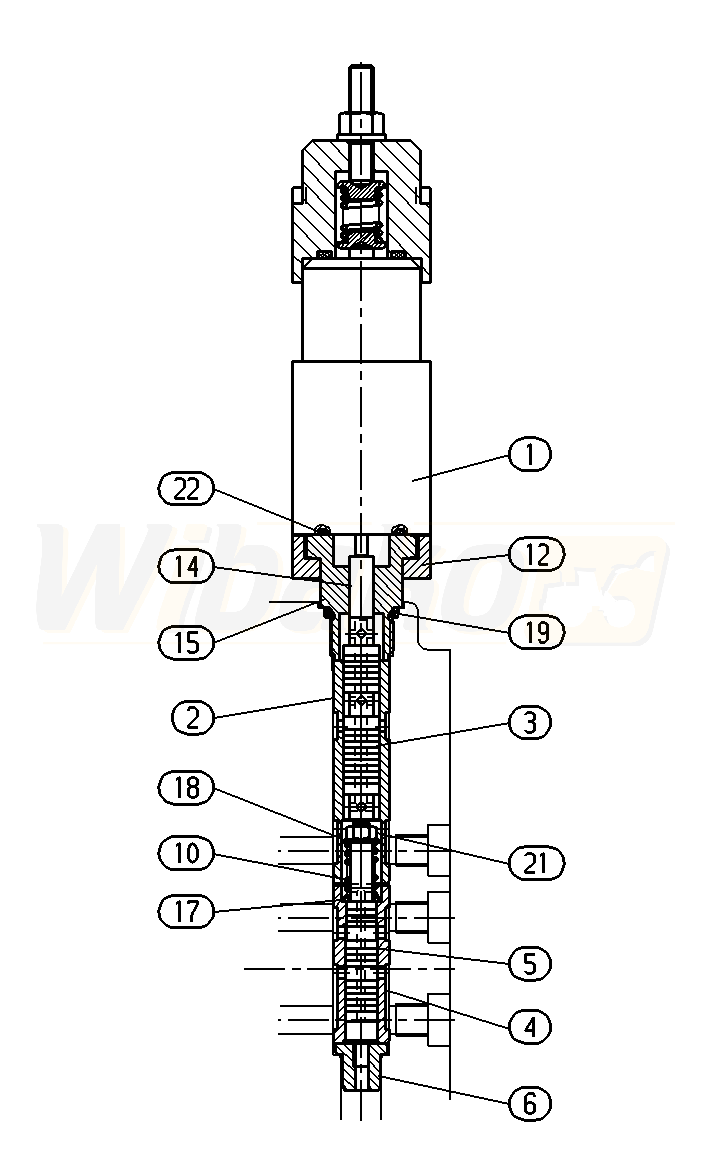

UNLOADING VALVE (59872)

UNLOADING VALVE
(59872)


1

PROPORTIONAL SOLENOID
(53547)

Group »


2

CONTROL SLEEVE
(59953)


3

CONTROL PISTON
(54079)


4

MEASURING BUSHING
(59954)


5

MEASURING PISTON
(59955)


6

PLUG
(54082)


10

COMPRESSION SPRING
(16195)


12

MOUNTING FLANGE
(59956)


14

PIN
(59957)


15

SCREW PLUG
(59958)


17

ADJUSTMENT SHIM
(59959)


18

WASHER


19

O-RING
(11092)


21

HEXAGON NUT
(54087)


22

O-RING
(12696)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
