A4VG90EP4DM1/32R-NZX02F001MH-S (R902125825)
Axial piston variable pump A4VG. Geometric displacement 90 cm3. Proportional control, electric U = 24 V. Pressure cut-off. Mechanical stroke limiter, externally adjustable. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for single pump.

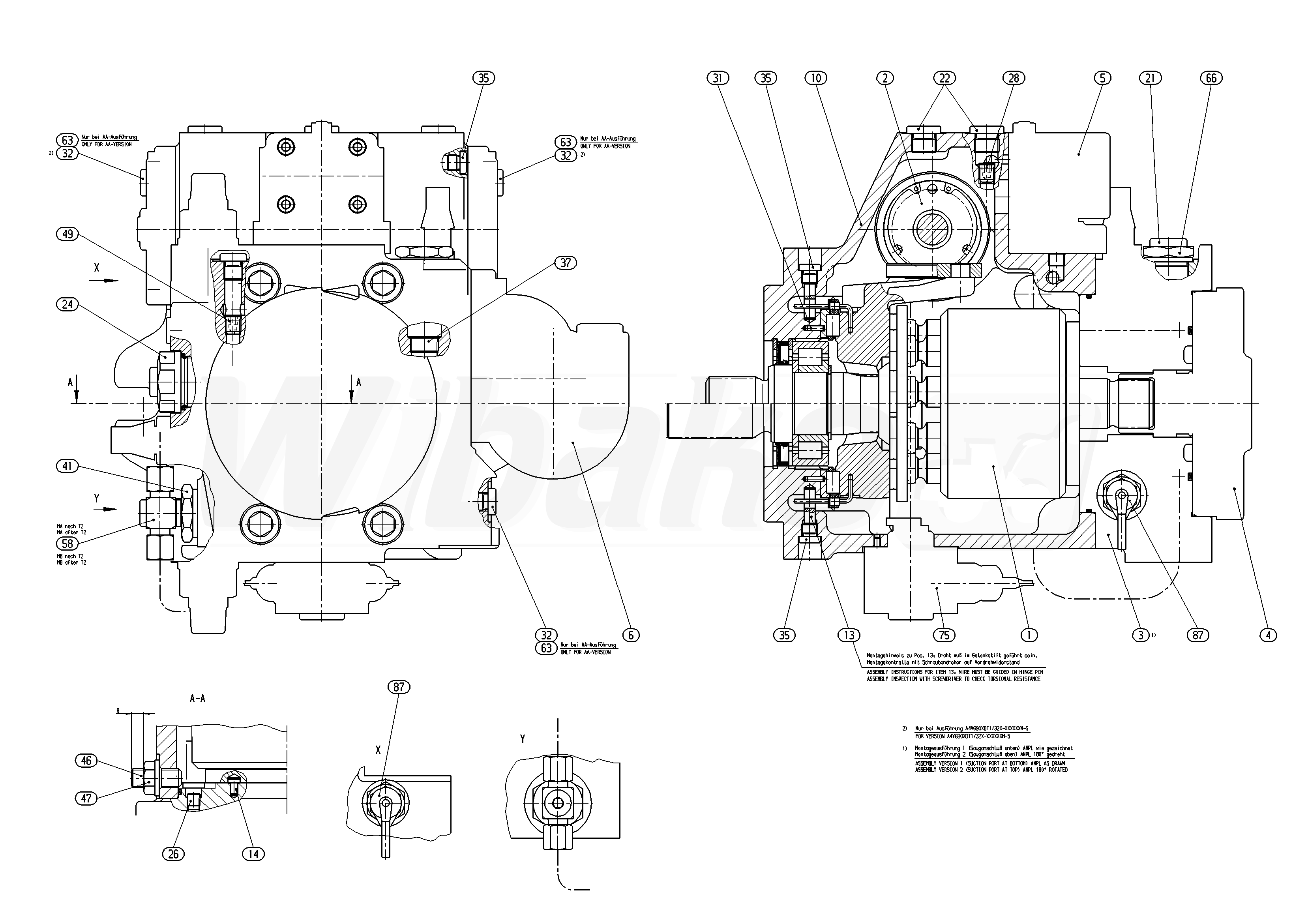

The above diagrams belong to Rexroth www.boschrexroth.com
