A4VG90HDD1/31R-PAF02FXX1S-S (R909448774)

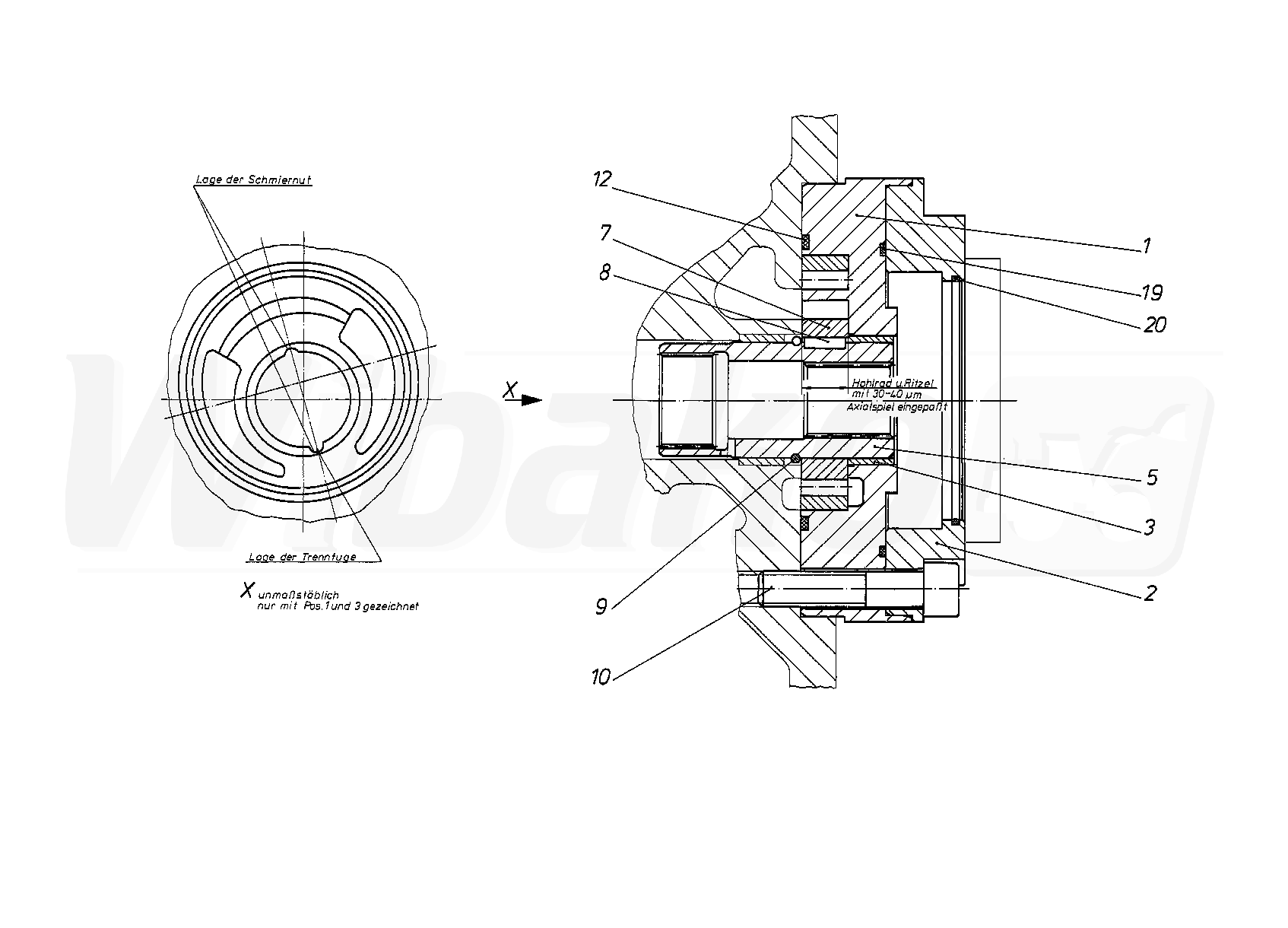

INTERNAL GEAR PUMP (61794)

INTERNAL GEAR PUMP
(61794)


1

FLANGE
(61815)


2

INTERMEDIATE FLANGE
(61816)


3

BUSHING
(19095)


5

THROUGH DRIVE SHAFT
(61817)


7

WHEEL SET
(10489)


8

PARALLEL KEY
(10490)


9

SNAP RING
(10491)


10

SOCKET HEAD CAP SCREW
(38155)


12

O-RING
(10461)


19

O-RING
(12935)


20

O-RING
(26864)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
