A4VG90MSD1/32L-NZX02F001D-S (R902023428)

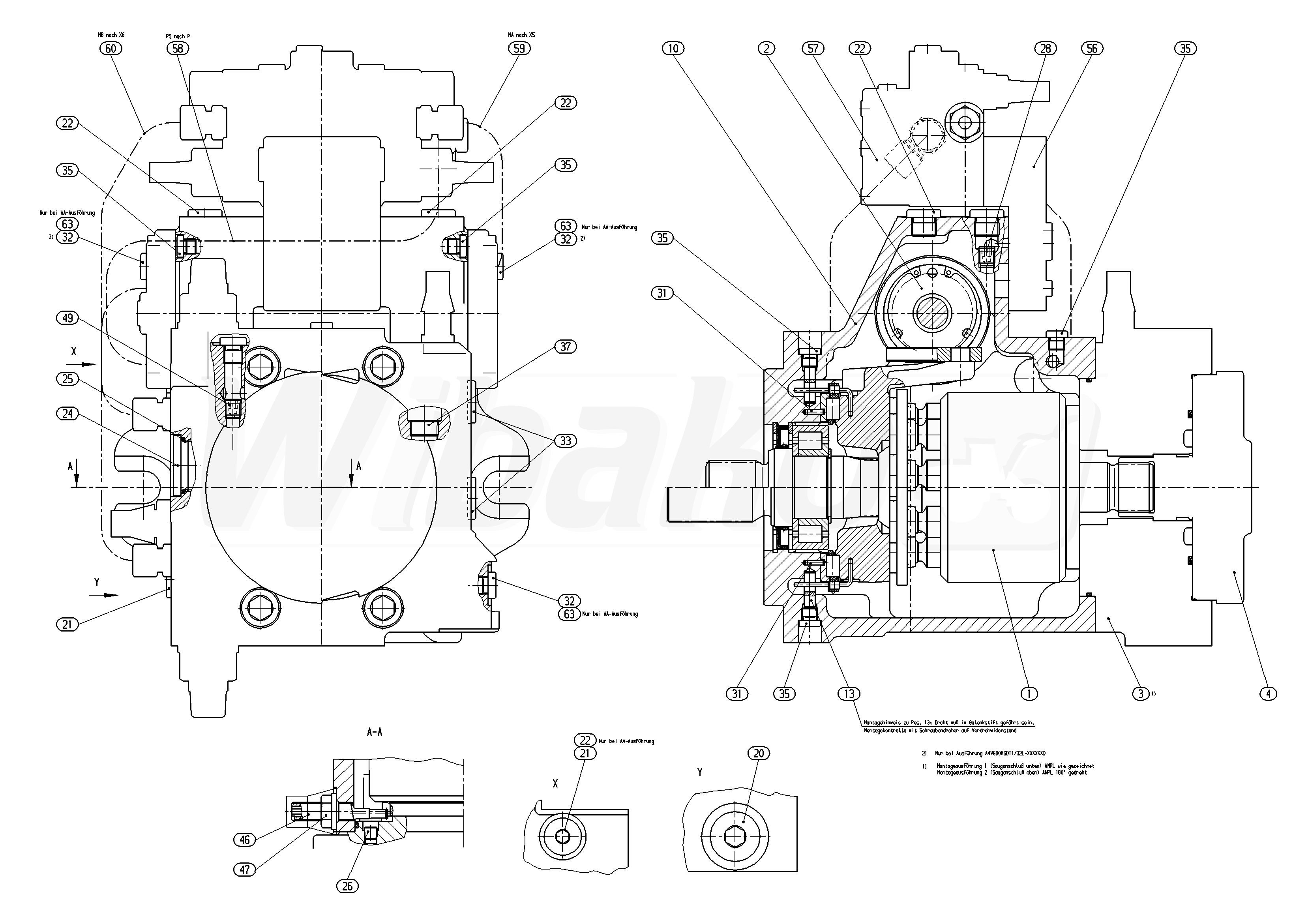

Axial piston variable pump A4VG. Geometric displacement 90 cm3. Mechanical stroke limiter, externally adjustable. Series 3, index 2. Direction of rotation (viewed on drive shaft): counter-clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft DIN 5480 for single pump.
1

ROTARY GROUP
(10386)

Group »


2

CONTROL
(19939)

Group »


3

CONNECTION PLATE
(10388)

Group »


4

INTERNAL GEAR PUMP
(12867)

Group »


10

HOUSING
(40229)


13

PIVOT PIN
(10393)


20

SCREW PLUG
(10394)


21

SCREW PLUG
(10090)


22

SCREW PLUG
(10395)


24

SCREW PLUG
(12195)


25

O-RING
(10534)


26

SCREW PLUG
(11753)


28

NOZZLE
(13378)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10190)


33

SCREW PLUG
(10397)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(10976)


46

ECCENTRIC SCREW
(10398)


47

SEALING NUT
(10399)


49

NOZZLE
(10400)


56

CONNECTION PLATE
(49148)

Group »


57

TORQUE-PRESSURE CONTROL VALVE
(49149)

Group »


58

HYDRAULIC LINE
(62419)

Group »


59

HYDRAULIC LINE
(62420)

Group »


60

HYDRAULIC LINE
(62421)

Group »



Return
