AA4VG90DEXD1/32R-NUFXXKXX1EP-S (R902154051)

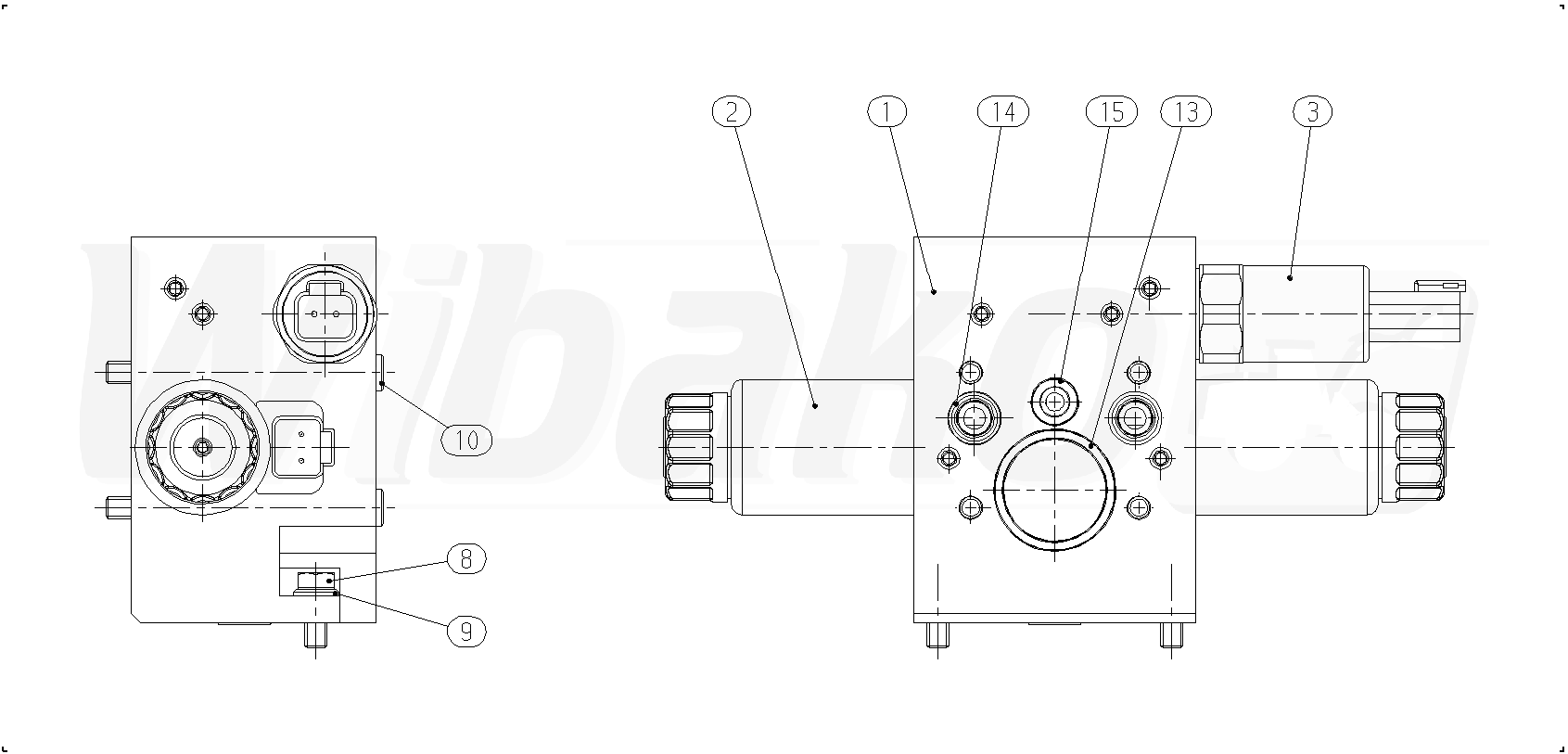

CONTROL VALVE (62818)

CONTROL VALVE
(62818)


1

BASIC UNIT
(62819)

Group »


2

SWITCHING SOLENOID
(11168)


3

PRESSURE REDUCING VALVE
(28338)


8

HEXAGON SCREW
(13334)


9

WASHER
(44945)


10

SOCKET HEAD CAP SCREW
(10785)


13

O-RING
(10508)


14

O-RING
(10512)


15

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
