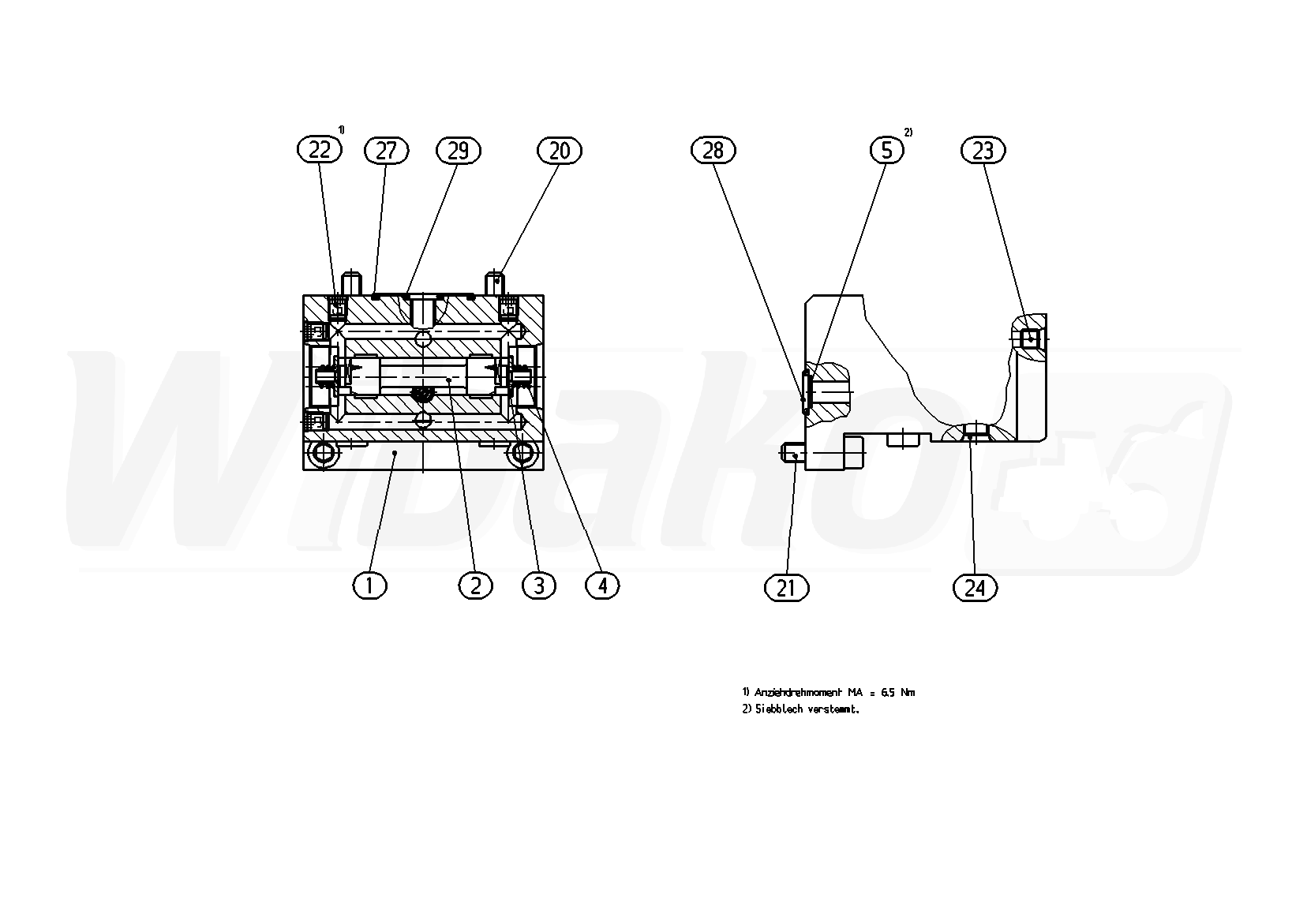

AA4VG90DA2DT2/32R-NXFXXFXX1D-S*G* (R909602342)
VALVE HOUSING (62974)

VALVE HOUSING
(62974)


1

VALVE HOUSING
(19530)


2

CONTROL PISTON
(19531)


3

SPRING DISK
(13196)


4

COMPRESSION SPRING
(10496)


5

SIEVE PLATE
(12043)


20

SOCKET HEAD CAP SCREW
(10505)


21

SOCKET HEAD CAP SCREW
(10506)


22

PLUG
(11172)


23

DOUBLE BREAK-OFF PLUG
(18990)


24

DOUBLE BREAK-OFF PLUG
(19009)


27

O-RING
(10508)


28

O-RING
(10512)


29

O-RING
(10227)



Return
