AA4VG90DGD3L/32R-NXFXXFXX1D-S (R902037995)

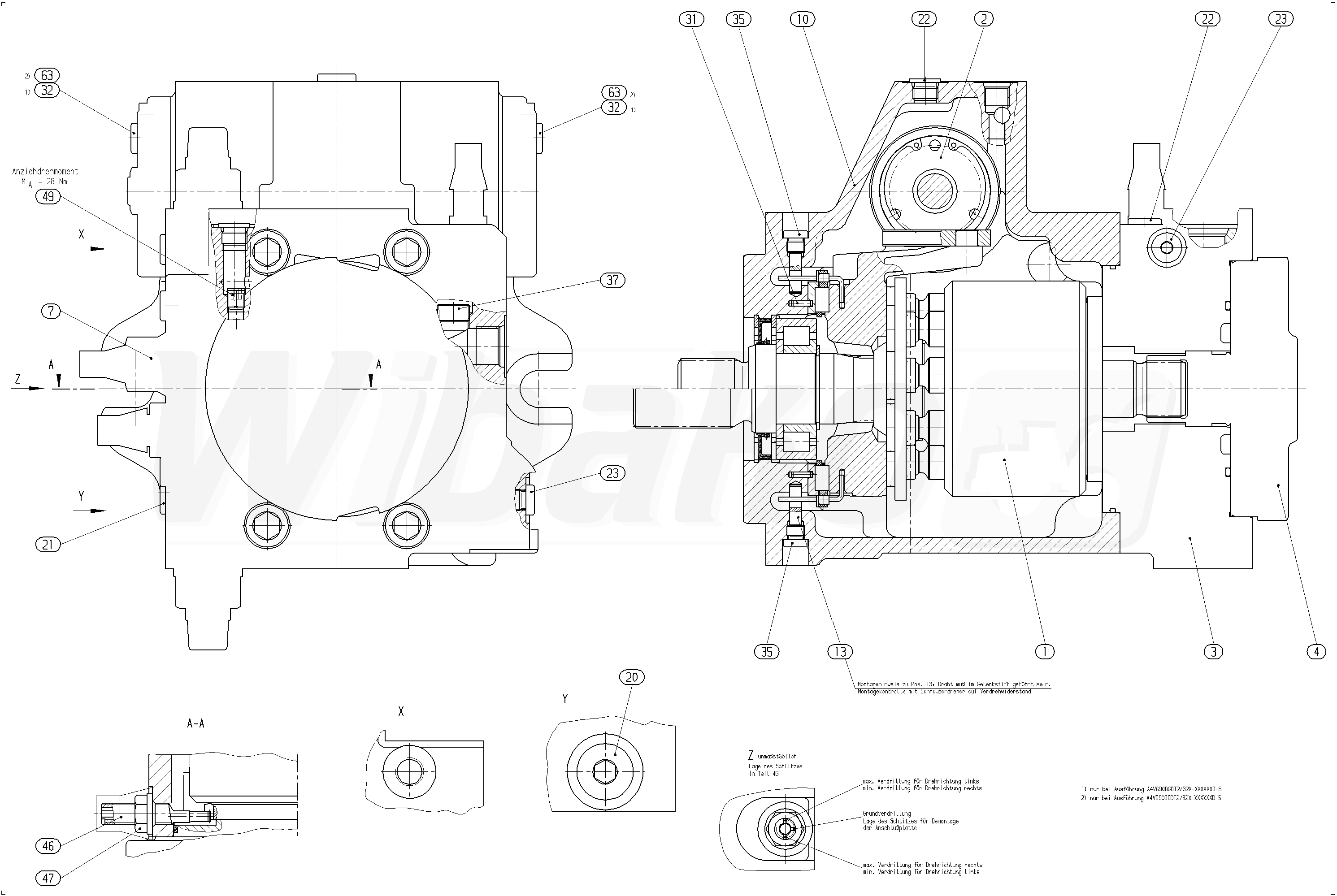

Axial piston variable pump A4VG. Geometric displacement 90 cm3. Hydraulic control, direct operated. Pressure cut-off. DA control valve, mechanically adjustable with position lever, direction of actuation, counter-clockwise. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer).
1

ROTARY GROUP
(62865)

Group »


2

CONTROL
(62866)

Group »


3

CONNECTION PLATE
(62822)

Group »


4

INTERNAL GEAR PUMP
(19655)

Group »


7

CONTROL CARTRIDGE
(62823)

Group »


10

HOUSING
(62856)


13

PIVOT PIN
(10393)


20

SCREW PLUG
(14354)


21

SCREW PLUG
(11372)


22

SCREW PLUG
(11370)


23

SCREW PLUG
(11371)


31

SLOTTED SPRING PIN
(10396)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(10976)


46

ECCENTRIC SCREW
(10398)


47

SEALING NUT
(10399)


49

NOZZLE
(14377)


98

SEAL KIT
(56902)
