AA4VG90EP1D1/32L-NXF52F041S-S (R902029010)

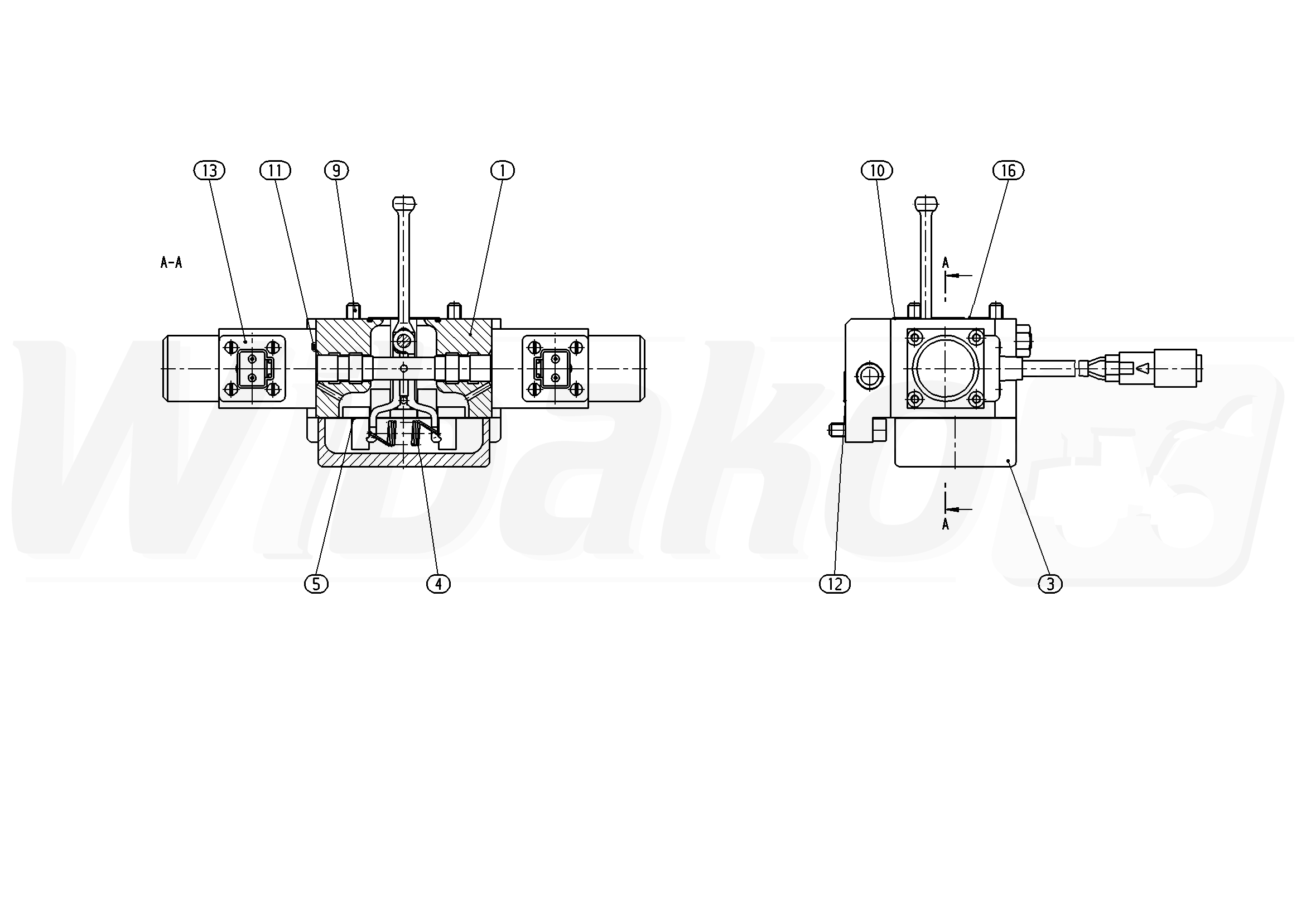

CONTROL MODULE (63152)

CONTROL MODULE
(63152)


1

CONTROL MODULE
(58544)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(14561)


5

SEAL
(13412)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


11

O-RING
(12696)


12

O-RING
(10512)


13

PROPORTIONAL SOLENOID
(58535)

Group »


16

O-RING
(10370)


98

SEAL KIT
(11169)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
