AA4VG90EP2DM1/32R-NSF52F001D-S (R902061238)

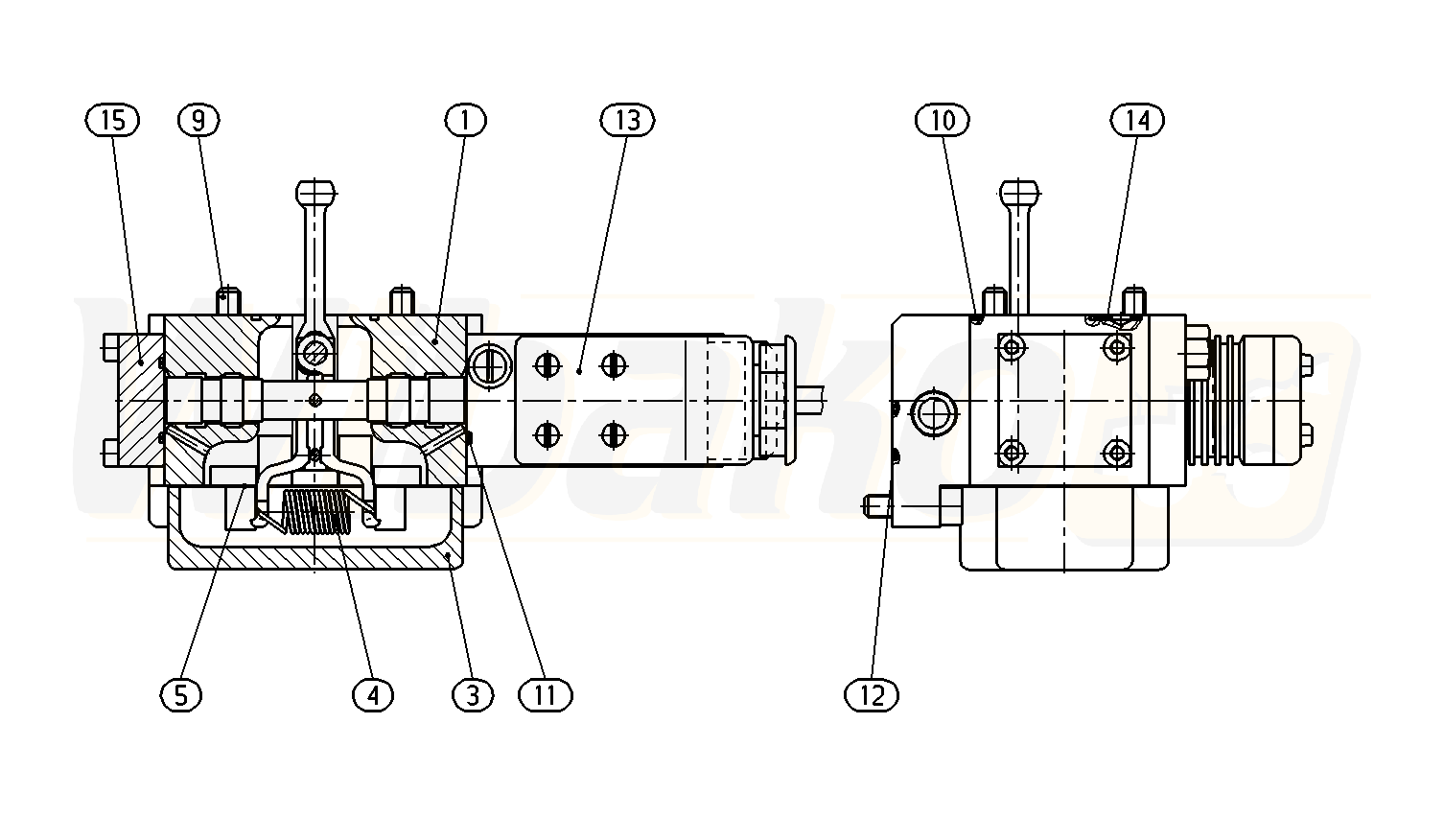

CONTROL MODULE (59353)

CONTROL MODULE
(59353)


1

CONTROL MODULE
(21556)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(14561)


5

SEAL
(13412)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


11

O-RING
(12696)


12

O-RING
(10512)


13

PROPORTIONAL SOLENOID
(29681)

Group »


14

O-RING
(10370)


15

COVER
(21861)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
