AA4VG90EP3D1/32R-NXFXXK021EC-S (R902116906)

Axial piston variable pump A4VG. Geometric displacement 90 cm3. Proportional control, electric U = 12 V. Pressure cut-off. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer).
1

ROTARY GROUP
(63220)

Group »


2

CONTROL
(16013)

Group »


3

CONNECTION PLATE
(63221)

Group »


4

BELL HOUSING
(60025)

Group »


5

CONTROL MODULE
(63755)

Group »


10

HOUSING
(63224)


13

PIVOT PIN
(10393)


14

POITIONING PIN
(10183)


20

SCREW PLUG
(14354)


22

SCREW PLUG
(11371)


24

SCREW PLUG
(12195)


25

O-RING
(10534)


26

SETSCREW
(10336)


27

DOUBLE BREAK-OFF PLUG
(18990)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10220)


33

SCREW PLUG
(11369)


39

SCREW PLUG
(32173)


41

THREADED REDUCING STUD
(50324)

Group »


48

SCREW PLUG
(11372)


49

PLUG
(12198)


51

O-RING
(12776)


68

NOZZLE
(10618)


71

THREADED PART
(63150)

Group »



Return

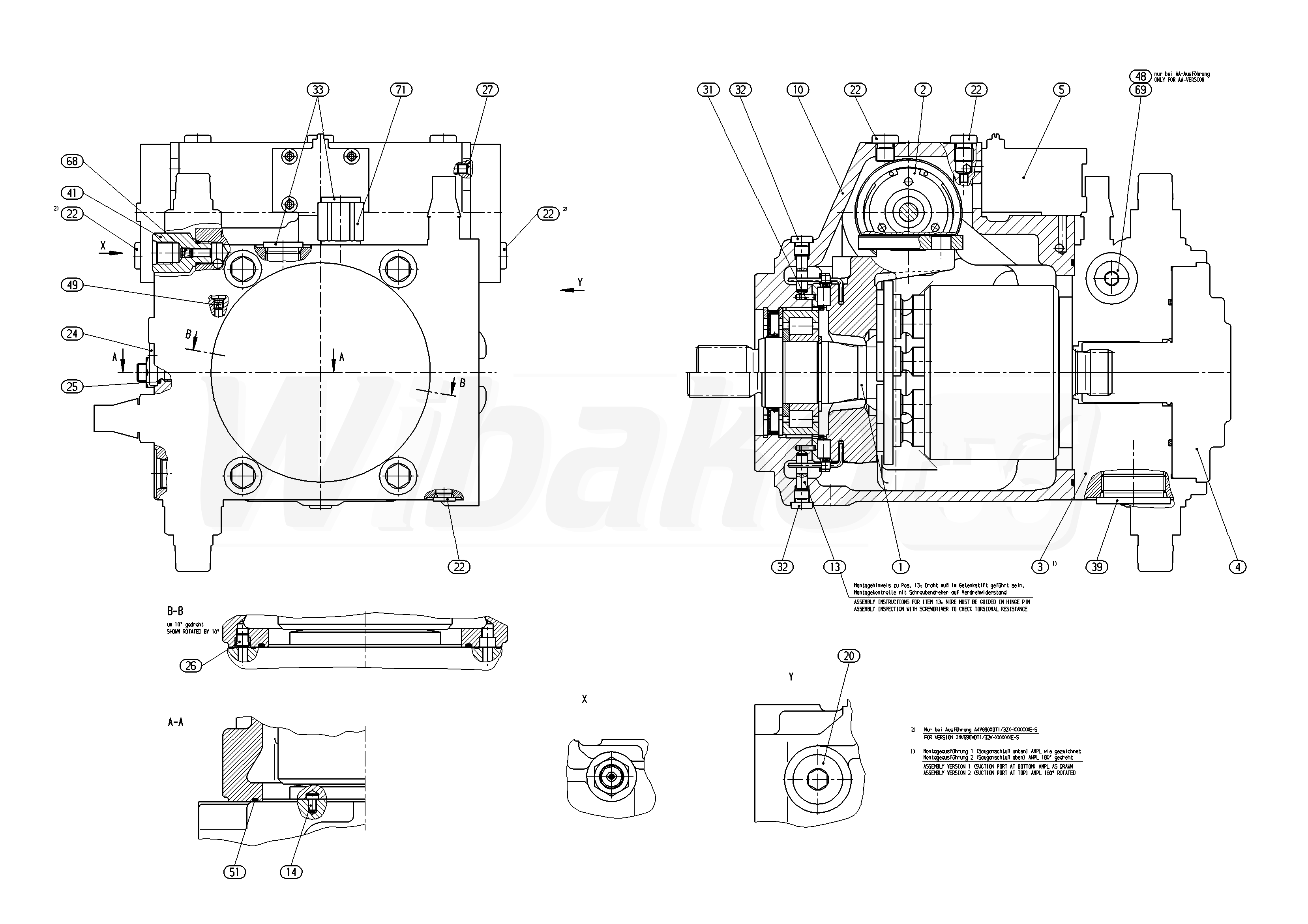

The above diagrams belong to Rexroth www.boschrexroth.com
