AA4VG90HDD1/32L-NUF60F001D-S (R902044611)

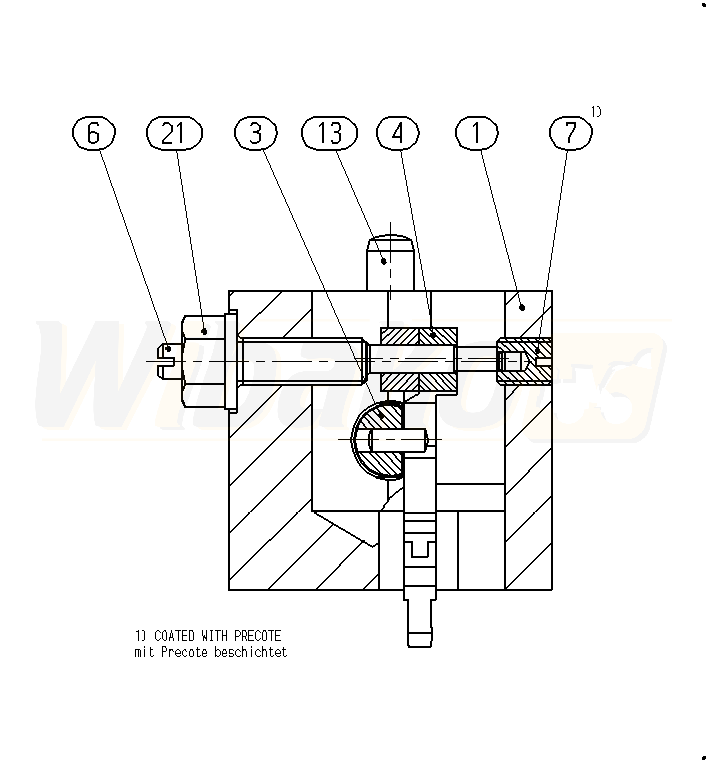

CONTROL HOUSING (21430)

CONTROL HOUSING
(21430)


1

HOUSING ASSEMBLY GROUP
(16877)


3

CONTROL PISTON
(21471)


4

LEVER
(16879)


6

ECCENTRIC PIN
(16880)


7

SETSCREW
(16881)


13

STRAIGHT PIN
(12694)


21

SEALING NUT
(10369)



Return
