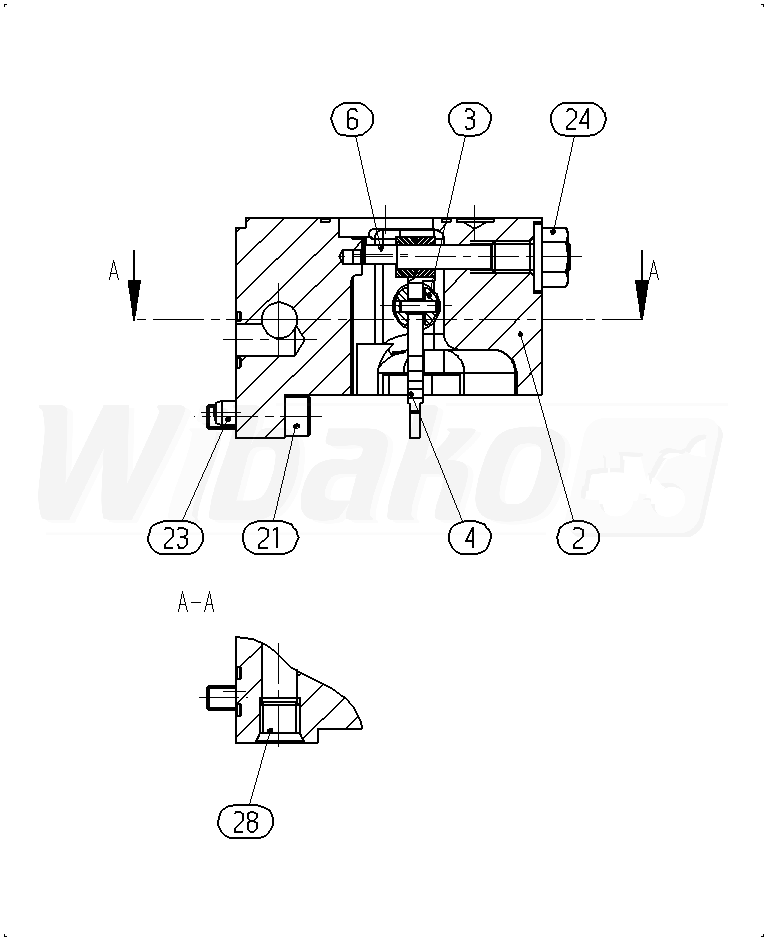

AA4VG90HDD1/32L-NXFXXF001D-S (R909608180)
CONTROL HOUSING (50924)

CONTROL HOUSING
(50924)


2

HOUSING
(51291)


3

CONTROL PISTON
(51292)


4

LEVER
(51293)


6

ECCENTRIC PIN
(14567)


21

SOCKET HEAD CAP SCREW
(10506)


23

STRAIGHT PIN
(12694)


24

SEALING NUT
(10215)


28

DOUBLE BREAK-OFF PLUG
(19010)



Return
