AA4VG90HDD1/32L-NXFXXF001D-S (R909608180)

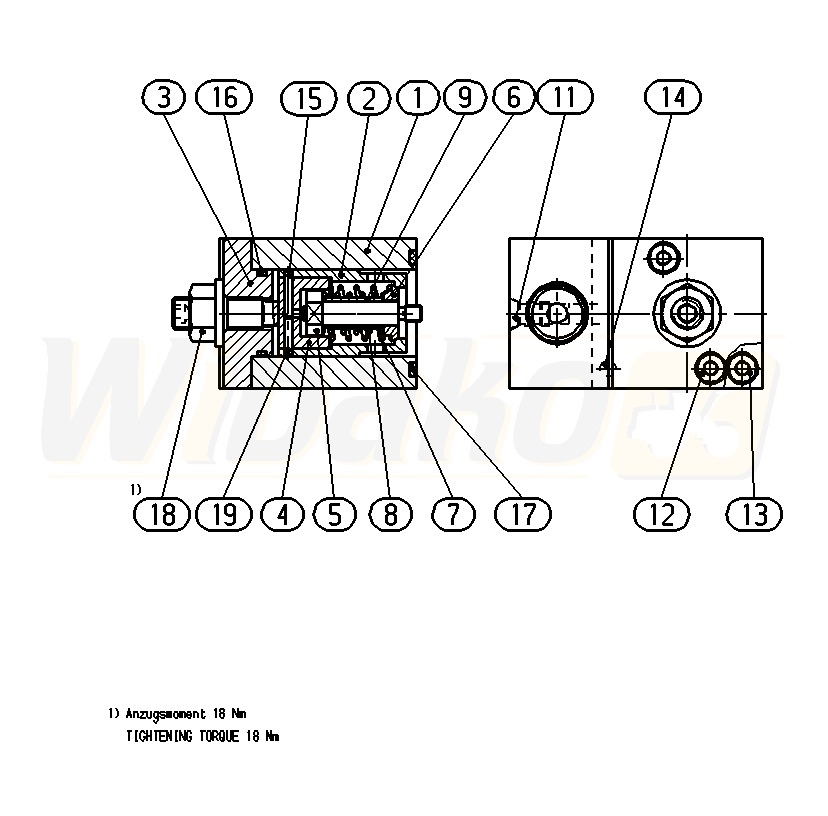

CONTROL MODULE ASSEMBLY (50926)

CONTROL MODULE ASSEMBLY
(50926)


1

HOUSING
(51295)


2

SPRING BUSH
(51296)


3

COVER
(51297)


4

ADJUSTING PART
(51298)


5

SPRING BOLT
(51299)


6

SPRING DISK
(51300)


7

COMPRESSION SPRING
(51301)


8

COMPRESSION SPRING
(51302)


9

SPACER SLEEVE
(51303)


11

DOUBLE BREAK-OFF PLUG
(18990)


12

SOCKET HEAD CAP SCREW
(12695)


13

SOCKET HEAD CAP SCREW
(17206)


14

STRAIGHT PIN
(12813)


15

NEEDLE-ROLLER
(51304)


16

O-RING
(12696)


17

O-RING
(11843)


18

SEALING NUT
(10215)


19

NEEDLE-ROLLER
(51305)
