AA4VG90HDD3L/32R-NXFXXFXX1D-S (R902032636)

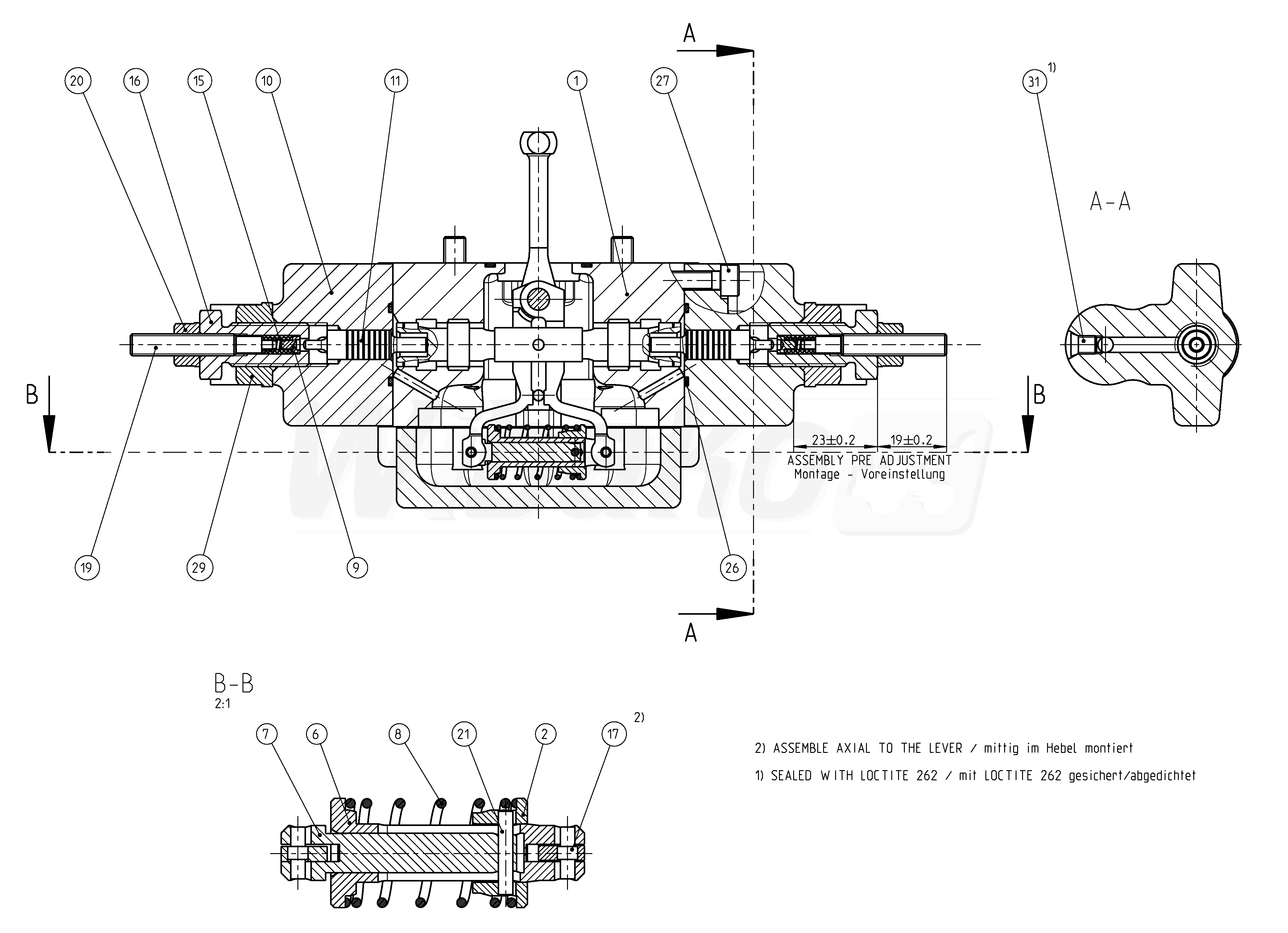

CONTROL MODULE (64029)

CONTROL MODULE
(64029)


1

CONTROL MODULE
(64030)

Group »


2

SPRING DISK
(52343)


6

SPRING BUSH
(52344)


7

SPRING BOLT
(52345)


8

COMPRESSION SPRING
(52346)


9

SPRING DISK
(23323)


10

HOUSING
(52347)


11

PISTON
(52348)


15

COMPRESSION SPRING
(23322)


16

ADJUSTING SCREW
(52349)


17

BOLT
(52350)


19

SETSCREW
(52351)


20

SEALING NUT
(10369)


21

NEEDLE-ROLLER
(51304)


26

O-RING
(12696)


27

SOCKET HEAD CAP SCREW
(23319)


29

SEALING NUT
(10399)


31

DOUBLE BREAK-OFF PLUG
(19008)


98

SEAL KIT
(11169)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
