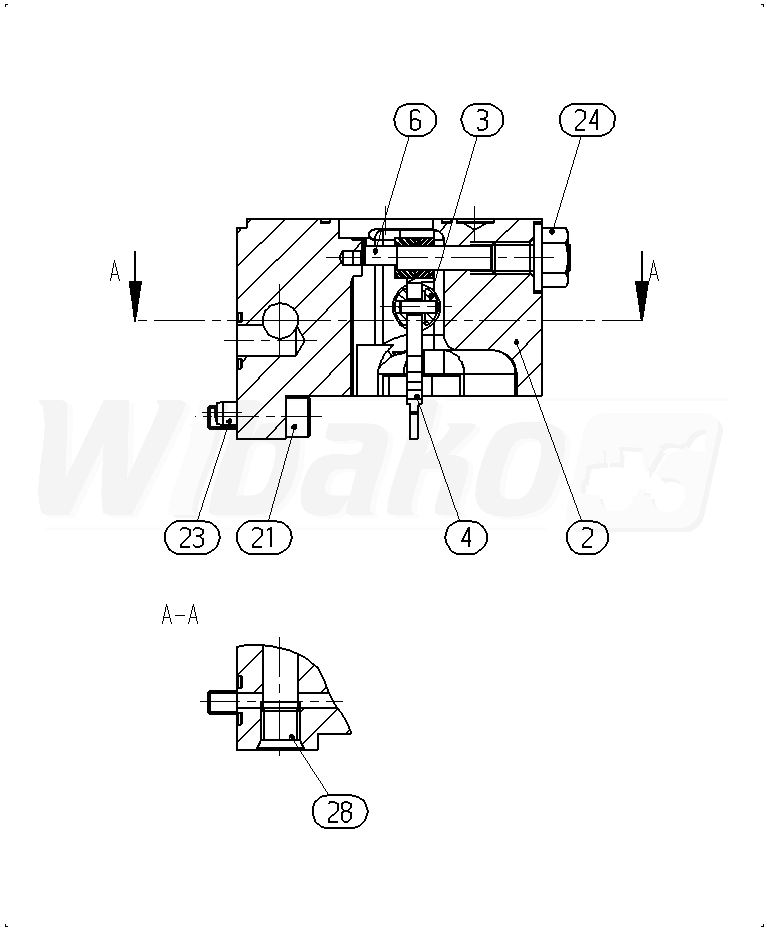

AA4VG90HDD2/32R-NZFXXFXX1D-S (R902032638)
CONTROL HOUSING (51996)

CONTROL HOUSING
(51996)


2

HOUSING
(52352)


3

CONTROL PISTON
(52353)


4

LEVER
(52354)


6

ECCENTRIC PIN
(14567)


21

SOCKET HEAD CAP SCREW
(10506)


23

STRAIGHT PIN
(12694)


24

SEALING NUT
(10215)


28

DOUBLE BREAK-OFF PLUG
(19010)
