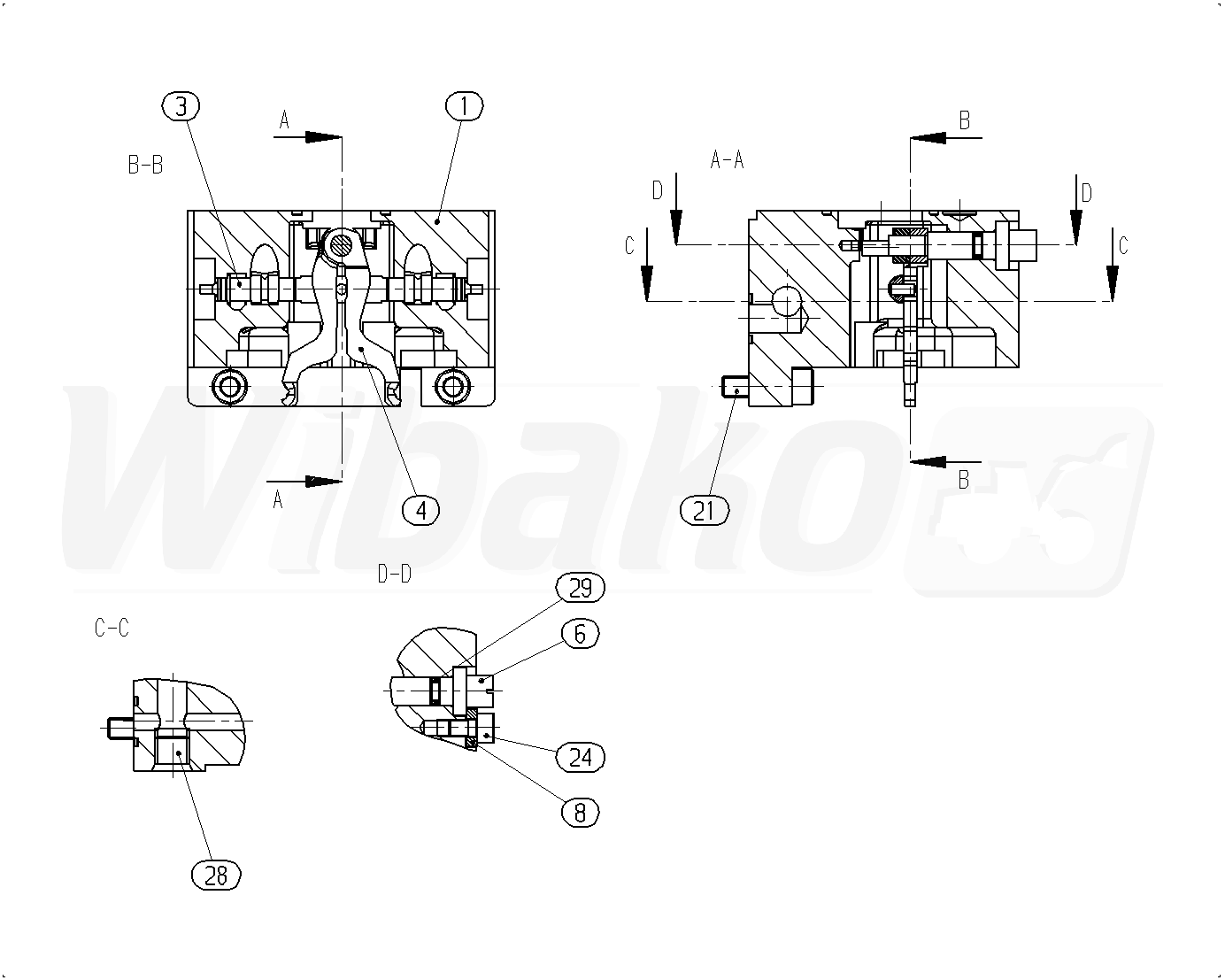

AA4VG90HDXD1/32L-NXFXXF001D-S (R902064259)
CONTROL HOUSING (51013)

CONTROL HOUSING
(51013)


1

HOUSING
(15515)


3

CONTROL PISTON
(51308)


4

LEVER PAIR
(13407)


6

ECCENTRIC PIN
(13408)


8

WASHER
(13410)


21

SOCKET HEAD CAP SCREW
(10506)


24

SOCKET HEAD CAP SCREW
(13425)


28

DOUBLE BREAK-OFF PLUG
(19010)


29

O-RING
(13429)
