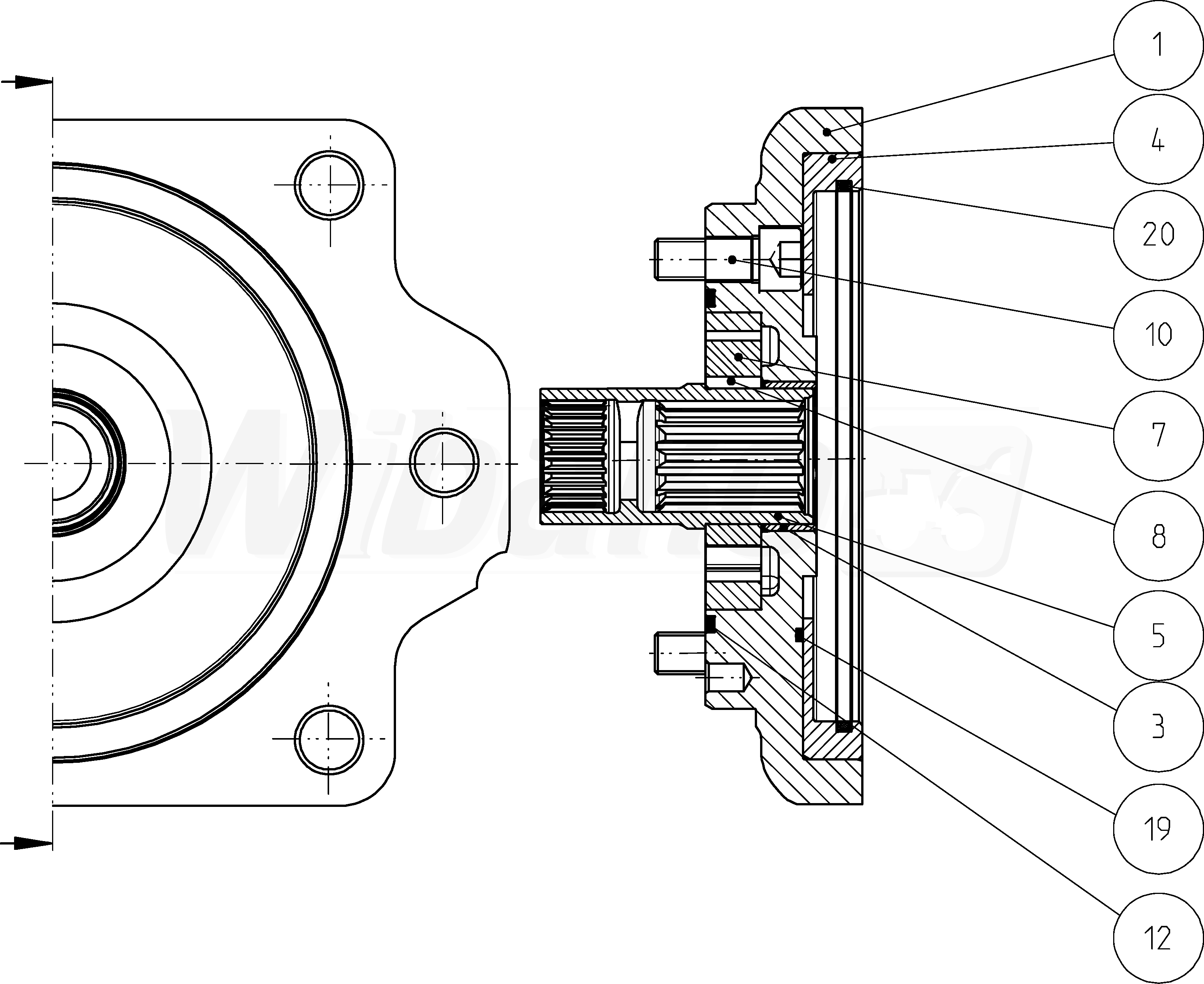

AA4VG90HW/32+AA4VG90DG/32 (R902087010)
INTERNAL GEAR PUMP (59198)

INTERNAL GEAR PUMP
(59198)


1

INTERMEDIATE FLANGE
(59933)


3

BUSHING
(19095)


4

INTERMEDIATE RING
(13398)


5

THROUGH DRIVE SHAFT
(12933)


7

WHEEL SET
(10489)


8

PARALLEL KEY
(10490)


10

SOCKET HEAD CAP SCREW
(12934)


12

O-RING
(10461)


19

O-RING
(12674)


20

O-RING
(26346)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
