AA4VG90HDDT2/32L-NUF52F001D-S (R909607857)

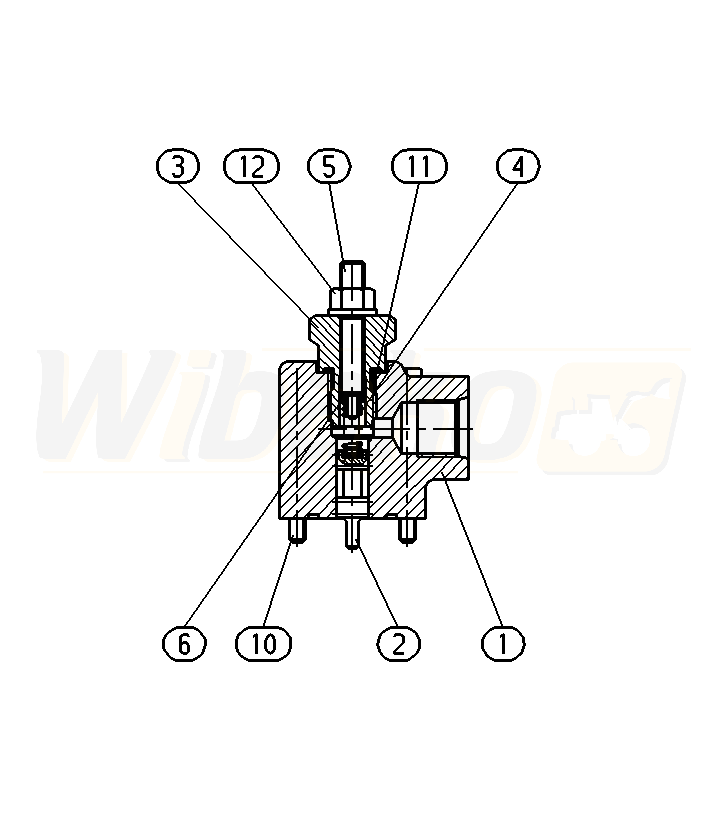

CONTROL MODULE ASSEMBLY (30479)

CONTROL MODULE ASSEMBLY
(30479)


1

HOUSING
(30744)


2

PISTON
(19548)


3

SCREW PLUG
(20361)


4

COMPRESSION SPRING
(20362)


5

SETSCREW
(20363)


6

WASHER
(20364)


10

SOCKET HEAD CAP SCREW
(17206)


11

O-RING
(10512)


12

SEALING NUT
(10369)



Return
