AA4VG90MSD2/32L-NSF52F011S-S (R902059298)

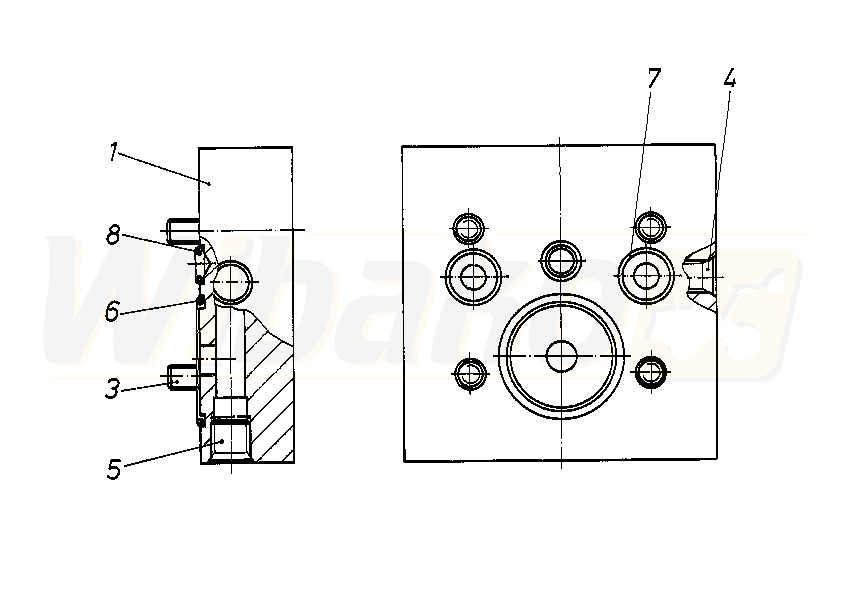

CONNECTION PLATE (49138)

CONNECTION PLATE
(49138)


1

CONNECTION PLATE
(49158)


3

SOCKET HEAD CAP SCREW
(10132)


4

DOUBLE BREAK-OFF PLUG
(19009)


5

DOUBLE BREAK-OFF PLUG
(19010)


6

O-RING
(10508)


7

O-RING
(10512)


8

O-RING
(10370)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
