AA4VG90NVD1/31L-PSF52XXX1S-S (R909441824)

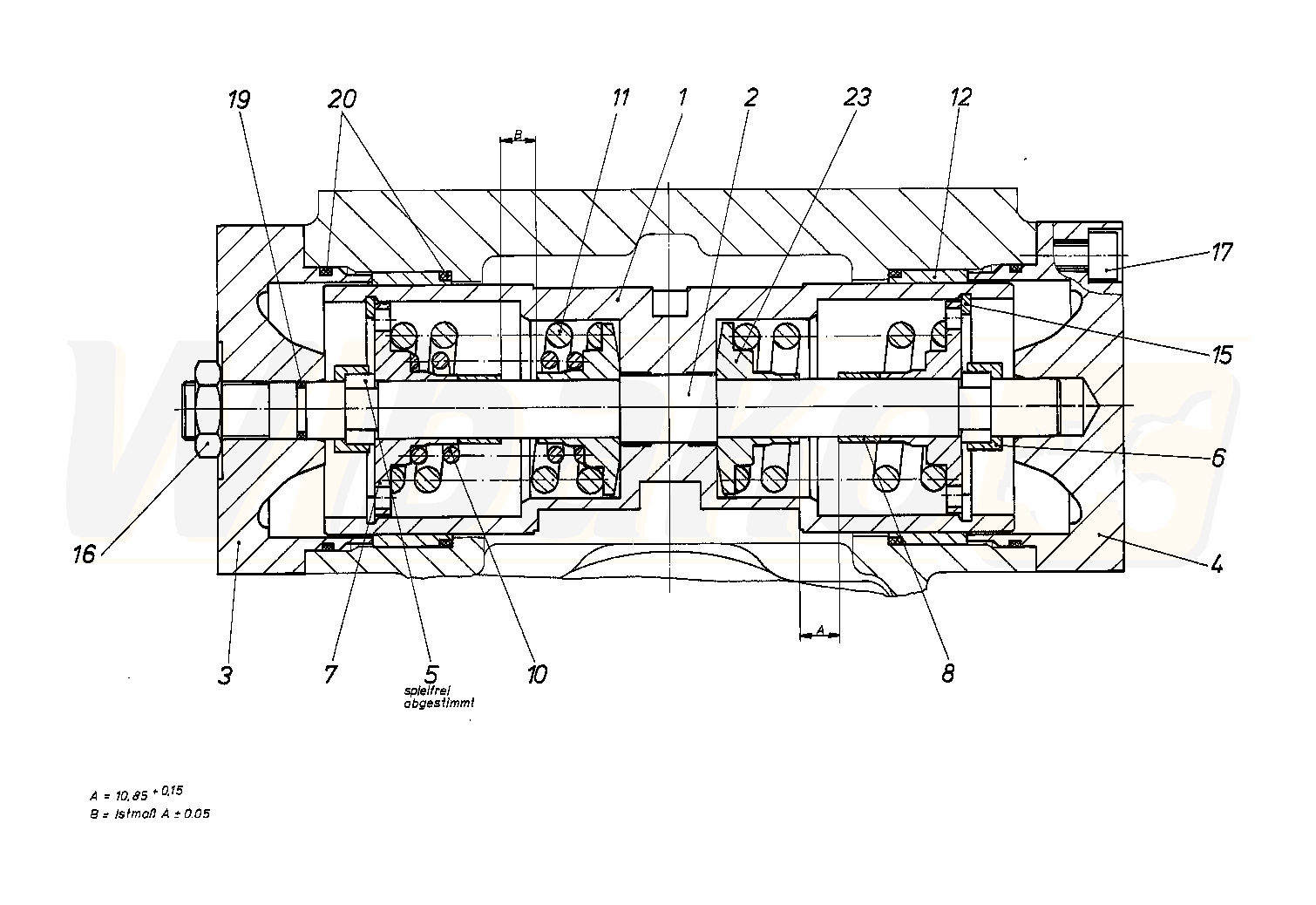

CONTROL (43122)

CONTROL
(43122)


1

POSITIONING PISTON
(43209)


2

ROD
(19077)


3

COVER
(19078)


4

COVER
(19079)


5

RING
(19080)


5

RING
(19081)


5

RING
(19082)


5

RING
(19083)


5

RING
(19084)


5

RING
(19085)


6

LOCATING RING
(19086)


7

SPRING DISK
(19087)


8

SPACER BUSHING
(19088)


8

SPACER BUSHING
(19089)


8

SPACER BUSHING
(19090)


8

SPACER BUSHING
(43210)


8

SPACER BUSHING
(43211)


8

SPACER BUSHING
(43212)


10

COMPRESSION SPRING
(19091)


11

COMPRESSION SPRING
(43213)


12

BUSHING
(12877)


15

RETAINING RING
(10449)


16

HEXAGON NUT
(10429)


17

SOCKET HEAD CAP SCREW
(10959)


19

O-RING
(10450)


20

O-RING
(10431)


23

SPRING DISK
(19093)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
