AA4VG90HWDX2/31R-PSF52F001D-S (R909447255)

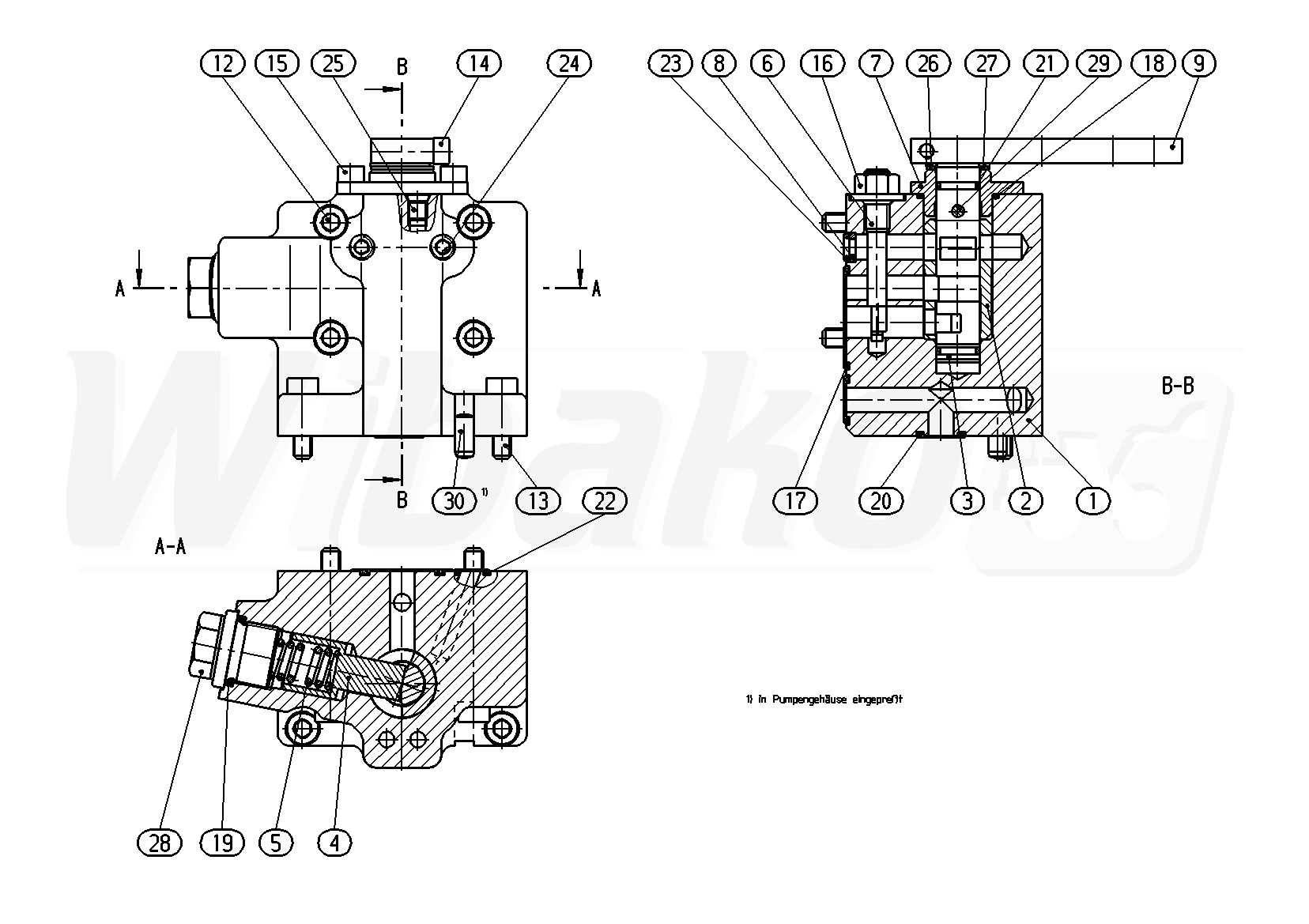

CONTROL MODULE (43271)

CONTROL MODULE
(43271)


1

HOUSING
(43329)


2

CONTROL SLEEVE
(43330)


3

CONTROL SHAFT
(43331)


4

SPRING BUSH
(43332)


5

COMPRESSION SPRING
(12728)


6

ECCENTRIC PIN
(14567)


7

COVER
(43333)


8

RING
(32868)


9

LEVER
(12681)


12

SOCKET HEAD CAP SCREW
(10505)


13

SOCKET HEAD CAP SCREW
(10506)


14

SOCKET HEAD CAP SCREW
(10698)


15

SOCKET HEAD CAP SCREW
(12810)


16

SEALING NUT
(10215)


17

O-RING
(10508)


18

O-RING
(10509)


19

O-RING
(10771)


20

O-RING
(10450)


21

O-RING
(10512)


22

O-RING
(10227)


23

O-RING
(10370)


24

SETSCREW
(43334)


25

DOUBLE BREAK-OFF PLUG
(18990)


26

RETAINING RING
(25622)


27

SHIM RING
(17166)


28

SCREW PLUG
(12812)


29

NEEDLE-ROLLER
(23340)


30

STRAIGHT PIN
(12694)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
