AA4VG90NVD1/32L-NSF52XXX1S-S*G* (R909601867)

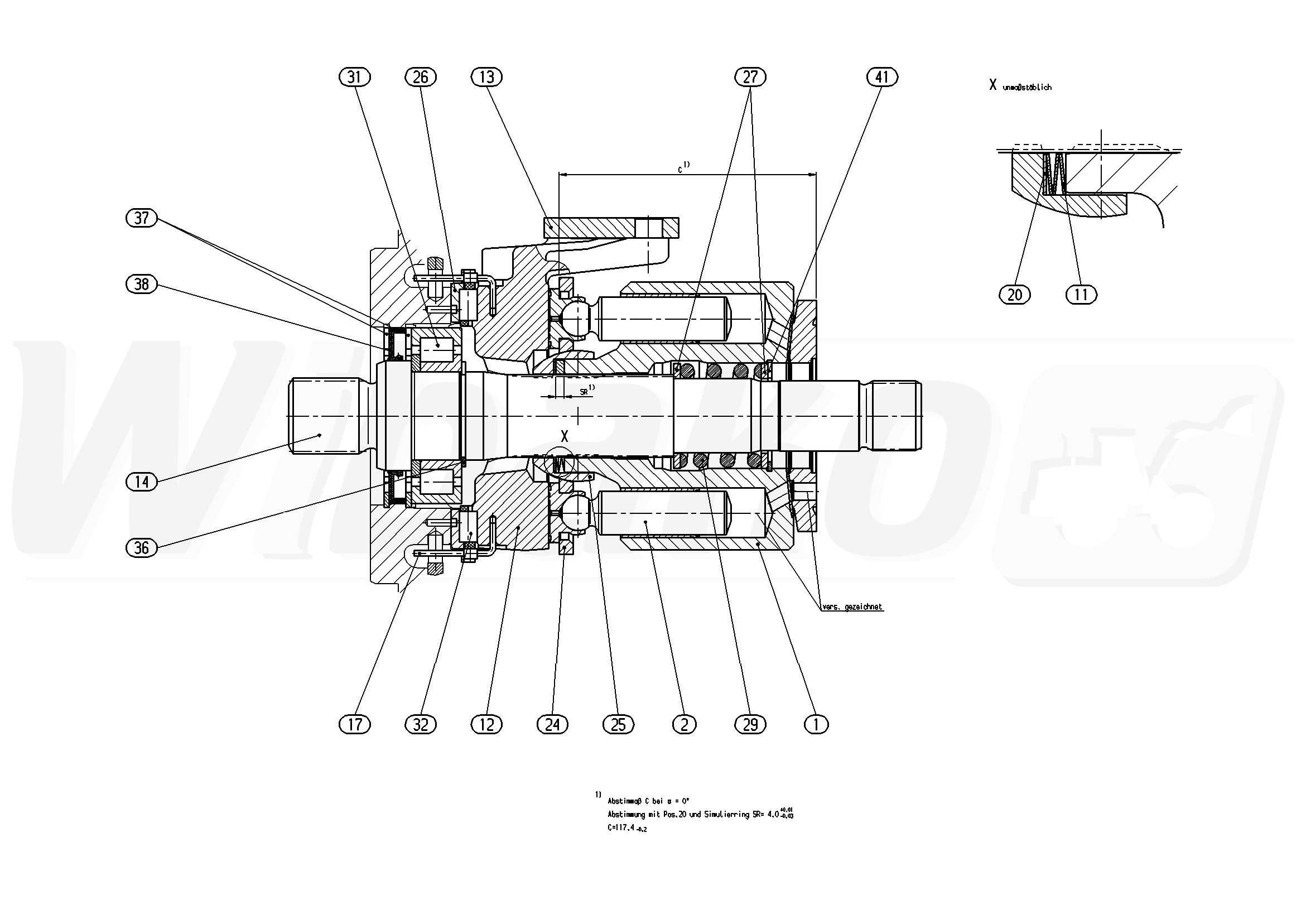

ROTARY GROUP (62979)

ROTARY GROUP
(62979)


1

CYLINDER
(62980)

Group »


2

PISTON PAD
(10415)


11

CUP-SPRING STACK
(10416)


12

CRADLE
(10404)


13

SLIDER
(10405)


14

DRIVE SHAFT
(14995)


17

WIRE
(10142)


20

SHIM RING
(10417)


20

SHIM RING
(10418)


20

SHIM RING
(10419)


20

SHIM RING
(10420)


24

RETAINING PLATE
(10421)


25

RETAINING BALL
(10422)


26

BEARING SHELL PAIR
(19147)


27

WASHER
(10423)


29

COMPRESSION SPRING
(10424)


31

CYL. ROLLER BEARING
(10408)


32

CAGE PAIR
(10409)


36

RETAINING RING
(10410)


37

RETAINING RING
(10411)


38

ROTARY SHAFT LIP SEAL
(10412)


41

RETAINING RING
(10425)
