A11VLO190LR3S/11+A4VG180EP2DT1/32 (R902076915)

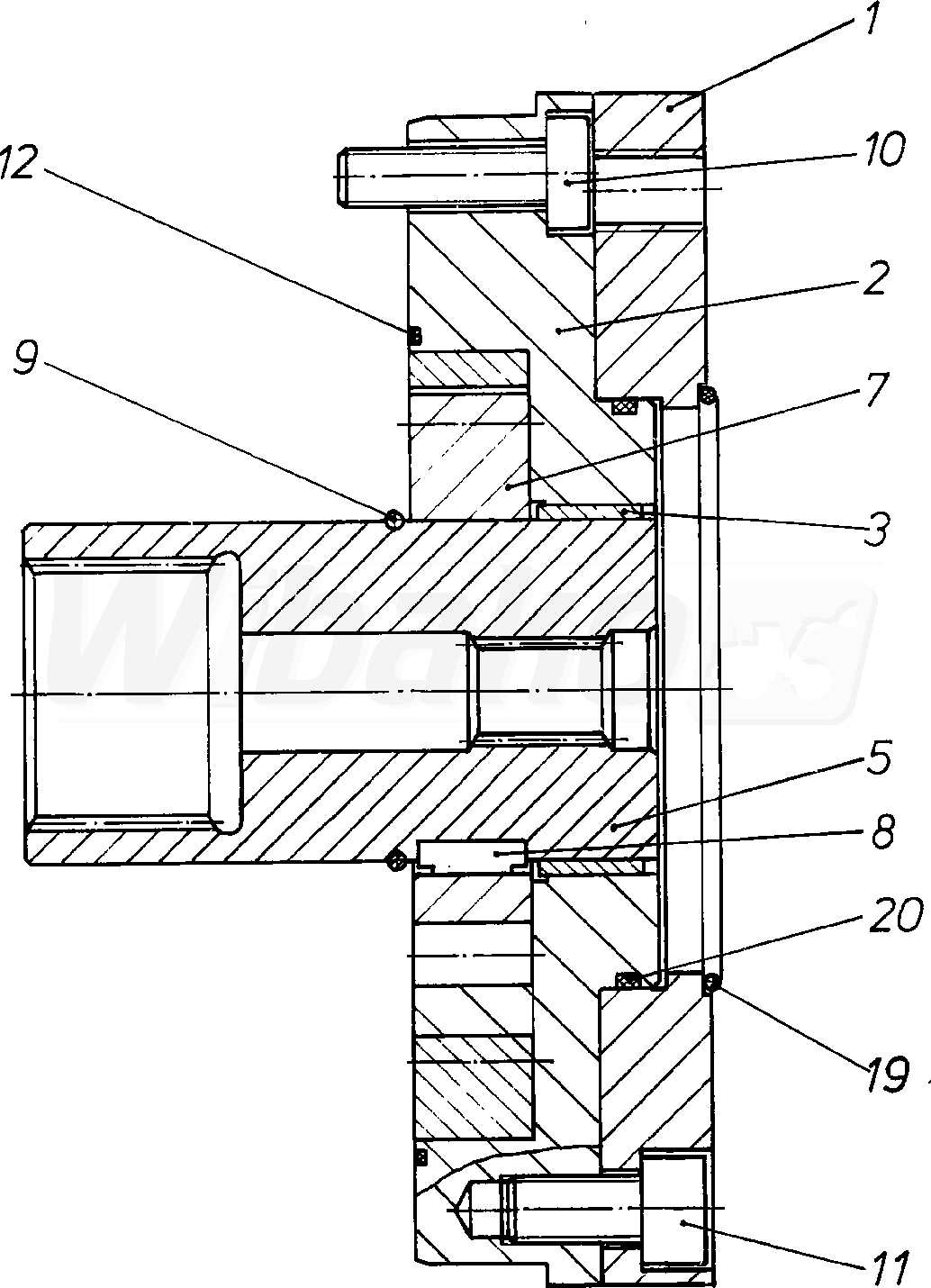

INTERNAL GEAR PUMP (64991)

INTERNAL GEAR PUMP
(64991)


1

INTERMEDIATE FLANGE
(65093)


2

PUMP COVER
(24830)


3

BUSHING
(19247)


5

THROUGH DRIVE SHAFT
(65094)


7

WHEEL SET
(24832)


8

PARALLEL KEY
(26373)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(24834)


11

SOCKET HEAD CAP SCREW
(31338)


12

O-RING
(24821)


19

O-RING
(26147)


20

O-RING
(10431)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
